YZP(112-400)系列起重及冶金用变频调速三相异步电动机主要适用于驱动各种型式的起重机械及其他类似设备；具有宽广的调速范围、较大的过载能力和较高的机械强度，因此，它特别适用于那些短时或断续运行，频繁地起动、制动、有时过负荷及显著振动与冲击的设备。
1/1

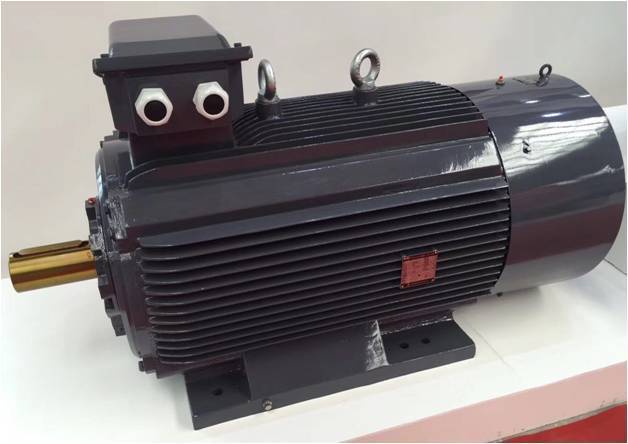

YZP(112-400)系列起重及冶金用变频调速三相异步电动机
沟通报价
产品介绍
技术参数
表1
|
工作方式 |
S2 |
S3 |
||||||||||||||||||||||||||||
|
Duty Type |
6次/时 6starts/hour |
|||||||||||||||||||||||||||||
|
CDF |
30分钟 30 minutes |
60分钟 60 minutes |
15% |
25% |
40% * |
60% |
100% |
|||||||||||||||||||||||
|
项目 |
Rated |
I1 |
n |
Rated |
I1 |
n |
Rated |
I1 |
n |
Rated |
I1 |
n |
Rated |
I1 |
Ist |
Breakdown |
no- |
n |
Rated |
I1 |
n |
Rated |
I1 |
n |
||||||
|
Item |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Lock |
torquc |
load |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
||||||
|
|
|
current |
|
|
current |
|
|
current |
|
|
current |
|
|
current |
rotor |
|
current |
|
|
current |
|
|
current |
|
||||||
|
机座号 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
current |
rated |
|
|
|
|
|
|
|
|
||||||
|
Frame size |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
A |
torquc |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
||||||
|
1500转/分 1500r/min |
||||||||||||||||||||||||||||||
|
112M1 |
3.3 |
7.8 |
1410 |
3.0 |
7.2 |
1419 |
4.0 |
9.4 |
1384 |
3.3 |
7.8 |
1410 |
3.0 |
7.2 |
38 |
2.8 |
3.72 |
1419 |
2.6 |
6.7 |
1431 |
2.0 |
5.82 |
1447 |
||||||
|
112M2 |
4.5 |
10.8 |
1477 |
4.0 |
9.5 |
1422 |
5.0 |
11.8 |
1398 |
4.5 |
10.8 |
1477 |
4.0 |
9.5 |
53.4 |
2.8 |
5.1 |
1422 |
3.5 |
8.8 |
1433 |
3.0 |
8.1 |
1443 |
||||||
|
132M1 |
6.3 |
13.9 |
1434 |
5.5 |
13 |
1444 |
7.5 |
16.3 |
1419 |
6.3 |
13.9 |
1434 |
5.5 |
13 |
87 |
3.0 |
6.7 |
1444 |
4.8 |
11.6 |
1451 |
4.0 |
10.5 |
1459 |
||||||
|
132M2 |
7.0 |
15.1 |
1427 |
6.3 |
14 |
1436 |
9.0 |
19.4 |
1399 |
7.0 |
15.1 |
1427 |
6.3 |
14 |
85 |
2.8 |
6.1 |
1436 |
5.3 |
11.9 |
1447 |
4.8 |
11.1 |
1452 |
||||||
|
160M1 |
8.5 |
17.1 |
1440 |
7.5 |
15 |
1445 |
10.0 |
19.8 |
1427 |
8.5 |
17.1 |
1440 |
7.5 |
15 |
110 |
3.2 |
6.1 |
1445 |
6.3 |
13.1 |
1457 |
5.0 |
11 |
1466 |
||||||
|
160M2 |
13.0 |
25.5 |
1434 |
11.0 |
23 |
1445 |
14.0 |
27.5 |
1428 |
13.0 |
25.5 |
1434 |
11.0 |
23 |
175 |
3.2 |
7.8 |
1445 |
9.5 |
18.9 |
1454 |
8.8 |
17.9 |
1458 |
||||||
|
160L |
17.0 |
33.4 |
1442 |
15.0 |
29 |
1445 |
20.0 |
38.8 |
1429 |
17.0 |
33.4 |
1442 |
15.0 |
29 |
243 |
3.3 |
11.2 |
1445 |
13.0 |
26.1 |
1457 |
11.0 |
22.9 |
1464 |
||||||
|
180L |
25.0 |
50.2 |
1453 |
22.0 |
45 |
1455 |
29.0 |
57.5 |
1444 |
25.0 |
50.2 |
1453 |
22.0 |
45 |
335 |
3.2 |
18.7 |
1455 |
19.0 |
40 |
1465 |
16.0 |
35.5 |
1471 |
||||||
|
200L |
35.0 |
67.1 |
1462 |
30.0 |
58 |
1465 |
39.0 |
73.9 |
1457 |
35.0 |
67.1 |
1462 |
30.0 |
58 |
485 |
3.2 |
20.1 |
1465 |
26.0 |
50.5 |
1473 |
22.0 |
44.3 |
1477 |
||||||
|
225M |
42.0 |
78.8 |
1464 |
37.0 |
70 |
1468 |
50.0 |
94.8 |
1456 |
42.0 |
78.8 |
1464 |
37.0 |
70 |
625 |
3.3 |
24.2 |
1468 |
32.0 |
61.5 |
1473 |
27.0 |
53.7 |
1477 |
||||||
|
250M1 |
52.0 |
95.4 |
1450 |
45.0 |
82.5 |
1458 |
60.0 |
113.8 |
1440 |
52.0 |
95.4 |
1450 |
45.0 |
82.5 |
551 |
2.8 |
19.8 |
1458 |
39.0 |
72.3 |
1464 |
33.0 |
61.5 |
1470 |
||||||
|
250M2 |
63.0 |
115.5 |
1449 |
55.0 |
101 |
1457 |
75.0 |
142.3 |
1437 |
63.0 |
115.5 |
1449 |
55.0 |
101 |
669 |
2.6 |
21.6 |
1457 |
47.0 |
76.2 |
1464 |
40.0 |
74.2 |
1469 |
||||||
|
280S1 |
70.0 |
127 |
1472 |
63.0 |
113.1 |
1475 |
95.0 |
174.3 |
1460 |
70.0 |
127 |
1472 |
63.0 |
113.1 |
868 |
3.0 |
29.5 |
1475 |
55.0 |
101 |
1478 |
48.0 |
88.1 |
1481 |
||||||
|
280S2 |
85.0 |
152.5 |
1470 |
75.0 |
133.2 |
1475 |
115.0 |
208 |
1458 |
85.0 |
152.5 |
1470 |
75.0 |
133.2 |
1024 |
3.0 |
32.3 |
1475 |
63.0 |
114.4 |
1478 |
55.0 |
101 |
1481 |
||||||
|
280M |
100.0 |
177.5 |
1470 |
90.0 |
159.8 |
1473 |
120.0 |
215.4 |
1464 |
100.0 |
177.5 |
1470 |
90.0 |
159.8 |
1230 |
3.0 |
36.8 |
1473 |
75.0 |
134.6 |
1478 |
65.0 |
118 |
1481 |
||||||
|
315S |
125.0 |
222 |
1451 |
110.0 |
193.2 |
1458 |
140.0 |
251.4 |
1444 |
125.0 |
222 |
1451 |
110.0 |
193.2 |
1484 |
3.2 |
38.5 |
1458 |
92.0 |
161.6 |
1465 |
80.0 |
142 |
1470 |
||||||
|
315M |
155.0 |
272.3 |
1459 |
132.0 |
231.8 |
1465 |
190.0 |
337.4 |
1448 |
155.0 |
272.3 |
1459 |
132.0 |
231.8 |
2216 |
3.2 |
54.6 |
1465 |
110.0 |
195.3 |
1471 |
75.0 |
139.2 |
1480 |
||||||
|
1000转/分 1000r/min |
||||||||||||||||||||||||||||||
|
112M1 |
1.7 |
4.5 |
935 |
1.5 |
4.2 |
944 |
2.2 |
5.6 |
908 |
1.7 |
4.5 |
935 |
1.5 |
4.2 |
19.4 |
2.7 |
2.51 |
944 |
1.3 |
3.8 |
952 |
1.1 |
3.6 |
959 |
||||||
|
112M2 |
2.5 |
6.3 |
924 |
2.2 |
5.7 |
935 |
3.0 |
7.6 |
900 |
2.5 |
6.3 |
924 |
2.2 |
5.7 |
25.3 |
2.5 |
3.0 |
935 |
1.8 |
5.0 |
948 |
1.5 |
4.6 |
957 |
||||||
|
132M1 |
3.3 |
8.0 |
953 |
3.0 |
7.5 |
958 |
4.0 |
9.5 |
941 |
3.3 |
8.0 |
953 |
3.0 |
7.6 |
40.0 |
2.7 |
4.08 |
958 |
2.6 |
6.8 |
964 |
2.0 |
6.0 |
972 |
||||||
|
132M2 |
4.0 |
9.6 |
961 |
3.7 |
9.03 |
964 |
5.0 |
11.4 |
949 |
4.0 |
9.6 |
961 |
4.0 |
9.03 |
53.6 |
3.0 |
8.97 |
964 |
3.2 |
8.36 |
969 |
2.5 |
7.38 |
976 |
||||||
|
160M1 |
6.3 |
13.3 |
960 |
5.5 |
11.6 |
966 |
7.5 |
16 |
950 |
6.3 |
13.3 |
960 |
5.5 |
11.6 |
70.9 |
2.7 |
4.69 |
966 |
4.8 |
10.4 |
971 |
4.0 |
9.2 |
976 |
||||||
|
160M2 |
8.5 |
17.9 |
964 |
7.5 |
15.9 |
969 |
10.0 |
20.5 |
956 |
8.5 |
17.9 |
964 |
7.5 |
15.9 |
110.6 |
2.8 |
6.7 |
969 |
6.3 |
13.7 |
974 |
5.5 |
12.6 |
977 |
||||||
|
160L |
13.0 |
26.2 |
960 |
11.0 |
22.6 |
967 |
15.0 |
30.4 |
953 |
13.0 |
26.2 |
960 |
11.0 |
22.6 |
158.2 |
2.8 |
8.73 |
967 |
9.0 |
19.1 |
974 |
7.5 |
16.8 |
978 |
||||||
|
180L |
17.0 |
36.6 |
971 |
15.0 |
32.7 |
974 |
20.0 |
42.0 |
964 |
17.0 |
36.6 |
971 |
15.0 |
32.7 |
247.5 |
3.0 |
15.69 |
974 |
13.0 |
29.8 |
978 |
11.0 |
26.6 |
981 |
||||||
|
200L |
25.0 |
50.8 |
970 |
22.0 |
45.8 |
974 |
31.0 |
61.5 |
962 |
25.0 |
50.8 |
970 |
22.0 |
45.8 |
402.5 |
3.2 |
20.25 |
974 |
19.0 |
40.6 |
978 |
16.0 |
36.5 |
981 |
||||||
|
225M |
35.0 |
67.8 |
968 |
30.0 |
58.8 |
973 |
40.0 |
77.5 |
962 |
35.0 |
67.8 |
968 |
30.0 |
58.8 |
514.1 |
2.8 |
21.66 |
973 |
25.0 |
50.2 |
977 |
22.0 |
45.9 |
980 |
||||||
|
250M1 |
42.0 |
78.7 |
980 |
37.0 |
70.1 |
983 |
50.0 |
93.7 |
976 |
42.0 |
78.7 |
980 |
37.0 |
70.1 |
625.4 |
3.1 |
22.97 |
983 |
32.0 |
61.4 |
985 |
27.0 |
53.7 |
987 |
||||||
|
250M2 |
52.0 |
96.5 |
979 |
45.0 |
83.4 |
982 |
63.0 |
116.8 |
974 |
52.0 |
96.5 |
979 |
45.0 |
83.4 |
738.8 |
3.1 |
26.39 |
982 |
39.0 |
73.1 |
985 |
33.0 |
64.2 |
987 |
||||||
|
280S1 |
63.0 |
116.8 |
977 |
55.0 |
102 |
981 |
75.0 |
139.1 |
972 |
63.0 |
116.8 |
977 |
55.0 |
102 |
789.9 |
2.8 |
29.11 |
981 |
48.0 |
90 |
983 |
40.0 |
75.9 |
986 |
||||||
|
280S2 |
70.0 |
129.8 |
981 |
63.0 |
116.9 |
983 |
85.0 |
155.9 |
976 |
70.0 |
129.8 |
981 |
63.0 |
116.9 |
1068.9 |
3.2 |
37.95 |
983 |
53.0 |
100.6 |
986 |
46.0 |
89.4 |
988 |
||||||
|
280M |
85.0 |
157.7 |
979 |
75.0 |
139.1 |
982 |
100.0 |
185.5 |
975 |
85.0 |
157.7 |
979 |
75.0 |
139.1 |
1226 |
3.1 |
42.23 |
982 |
63.0 |
118.3 |
985 |
55.0 |
105.7 |
987 |
||||||
|
315S |
103.0 |
210.3 |
978 |
90.0 |
165.2 |
981 |
120.0 |
217.7 |
974 |
103.0 |
210.3 |
978 |
90.0 |
165.2 |
1326.6 |
3.4 |
51.01 |
981 |
75.0 |
140.8 |
984 |
65. |
124.9 |
986 |
||||||
|
315M |
125.0 |
226.8 |
974 |
110.0 |
197.4 |
977 |
155.0 |
284.3 |
967 |
125.0 |
226.8 |
974 |
110.0 |
197.4 |
1402.1 |
2.9 |
49.12 |
977 |
92.0 |
168.8 |
981 |
80.0 |
148.5 |
984 |
||||||
表2
|
工作方式 |
S2 |
S3 |
||||||||||||||||||||||
|
Duty Type |
6次/时 6starts/hour |
|||||||||||||||||||||||
|
CDF |
30分钟 30 minutes |
60分钟 60 minutes |
15% |
25% |
40% * |
60% |
100% |
|||||||||||||||||
|
项目 |
Rated |
I1 |
N |
Rated |
I1 |
n |
Rated |
I1 |
n |
Rated |
I1 |
n |
Rated |
I1 |
Ist |
Breakdown |
no- |
n |
Rated |
I1 |
n |
Rated |
I1 |
n |
|
Item |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Rated |
torquc |
load |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
|
|
|
current |
|
|
current |
|
|
current |
|
|
current |
|
|
current |
rotor |
|
current |
|
|
current |
|
|
current |
|
|
机座号 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
current |
rated |
|
|
|
|
|
|
|
|
|
Frame size |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
A |
torquc |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
|
750转/分 750r/min |
||||||||||||||||||||||||
|
160L |
8.5 |
19.4 |
719 |
7.5 |
17.8 |
723 |
11.0 |
24.8 |
707 |
8.5 |
19.4 |
719 |
7.5 |
17.8 |
100.1 |
2.8 |
9.32 |
723 |
6.3 |
15.8 |
728 |
5.5 |
14.6 |
730 |
|
180L |
13.0 |
30.1 |
714 |
11.0 |
25.5 |
721 |
15.0 |
34.3 |
706 |
13.0 |
30.1 |
714 |
11.0 |
25.5 |
125.8 |
2.4 |
12.50 |
721 |
9.5 |
23.2 |
725 |
8.0 |
20.7 |
729 |
|
200L |
17.0 |
39.2 |
726 |
15.0 |
35.4 |
729 |
22.0 |
47.9 |
718 |
17.0 |
39.2 |
726 |
15.0 |
35.4 |
258.6 |
3.1 |
20.10 |
729 |
13.0 |
32.5 |
732 |
11.0 |
30.1 |
735 |
|
225M |
26.0 |
55.4 |
722 |
22.0 |
48.1 |
727 |
30.0 |
63.1 |
717 |
26.0 |
55.4 |
722 |
22.0 |
48.1 |
350.0 |
2.8 |
23.45 |
727 |
19.0 |
43.2 |
730 |
16.0 |
38.5 |
733 |
|
250M1 |
36.0 |
77.6 |
718 |
30.0 |
65.5 |
724 |
42.0 |
90.4 |
711 |
36.0 |
77.6 |
718 |
30.0 |
65.5 |
401.9 |
2.8 |
31.29 |
724 |
26.0 |
59.8 |
728 |
22.0 |
53.5 |
731 |
|
250M2 |
42.0 |
89.4 |
718 |
37.0 |
79.8 |
723 |
52.0 |
110.6 |
709 |
42.0 |
89.4 |
718 |
37.0 |
79.8 |
471.9 |
2.6 |
35.32 |
723 |
32.0 |
70.9 |
727 |
27.0 |
63.1 |
731 |
|
280S |
52.0 |
104.6 |
733 |
45.0 |
92.7 |
735 |
60.0 |
119.1 |
730 |
52.0 |
104.6 |
733 |
45.0 |
92.7 |
710.5 |
3.1 |
43.23 |
735 |
39.0 |
83.6 |
737 |
33.0 |
74.6 |
739 |
|
280M |
63.0 |
122.3 |
730 |
55.0 |
108.0 |
732 |
75.0 |
146.6 |
725 |
63.0 |
122.3 |
730 |
55.0 |
108.0 |
689.2 |
2.7 |
40.01 |
732 |
47.0 |
94.6 |
735 |
40.0 |
83.6 |
737 |
|
315S1 |
70.0 |
137.6 |
738 |
63.0 |
126.8 |
739 |
84.0 |
161.2 |
735 |
70.0 |
137.6 |
738 |
63.0 |
126.8 |
1088.6 |
3.2 |
57.11 |
739 |
53.0 |
110.7 |
741 |
46.0 |
101.2 |
742 |
|
315S2 |
85.0 |
167.1 |
737 |
75.0 |
151.0 |
739 |
100.0 |
192.0 |
735 |
85.0 |
167.1 |
737 |
75.0 |
151.0 |
1333.7 |
3.3 |
68.88 |
739 |
63.0 |
133.4 |
741 |
55.0 |
121.1 |
742 |
|
315M1 |
100.0 |
192.0 |
737 |
90.0 |
174.8 |
738 |
125.0 |
234.5 |
733 |
100.0 |
192.0 |
737 |
90.0 |
174.8 |
1482.8 |
3.3 |
71.14 |
738 |
75.0 |
151.2 |
740 |
65.0 |
136.1 |
741 |
|
355M2 |
125.0 |
243.1 |
741 |
110.0 |
219.1 |
742 |
155.0 |
294.2 |
738 |
125.0 |
243.1 |
741 |
110.0 |
219.1 |
2086.4 |
3.3 |
98.85 |
742 |
92.0 |
190.2 |
743 |
80.0 |
174.2 |
744 |
|
355L1 |
150.0 |
284.9 |
740 |
132.0 |
256.7 |
741 |
190.0 |
356.5 |
737 |
150.0 |
284.9 |
740 |
132.0 |
256.7 |
2367.0 |
3.3 |
108.05 |
741 |
110.0 |
221.8 |
743 |
95.0 |
144.3 |
744 |
|
355L2 |
185.0 |
351.4 |
740 |
160.0 |
311.2 |
741 |
225.0 |
422.2 |
738 |
185.0 |
351.4 |
740 |
160.0 |
311.2 |
2953.1 |
3.2 |
130.71 |
741 |
132.0 |
269.5 |
743 |
115.0 |
240.8 |
744 |
|
400L1 |
230.0 |
432.2 |
739 |
200.0 |
384.8 |
741 |
280.0 |
425.4 |
737 |
230.0 |
432.2 |
739 |
200.0 |
384.8 |
3275.1 |
3.3 |
88.35 |
741 |
170.0 |
335.1 |
742 |
145.0 |
296.6 |
743 |
|
400L2 |
300.0 |
570.4 |
740 |
250.0 |
492.7 |
742 |
350.0 |
657.8 |
738 |
300.0 |
570.4 |
740 |
250.0 |
492.7 |
4711.1 |
3.4 |
125.45 |
742 |
210.0 |
429.6 |
743 |
180.0 |
387.9 |
744 |
|
600转/分 600r/min |
||||||||||||||||||||||||
|
280S |
42.0 |
570.4 |
588 |
37.0 |
83.2 |
589 |
55.0 |
115.8 |
583 |
42.0 |
570.4 |
588 |
37.0 |
83.2 |
515.5 |
2.8 |
42.79 |
589 |
32.0 |
75.0 |
591 |
27.0 |
68.0 |
592 |
|
280M |
52.0 |
112.5 |
587 |
45.0 |
99.9 |
589 |
63.0 |
132.7 |
584 |
52.0 |
112.5 |
587 |
45.0 |
99.9 |
629.7 |
2.9 |
50.68 |
589 |
39.0 |
91.4 |
591 |
33.0 |
81.9 |
592 |
|
315S1 |
63.0 |
131.1 |
584 |
55.0 |
116.2 |
586 |
75.0 |
152.5 |
581 |
63.0 |
131.3 |
584 |
55.0 |
116.2 |
784.6 |
2.9 |
53.88 |
586 |
47.0 |
104.6 |
588 |
40.0 |
92.7 |
590 |
|
315S2 |
70.0 |
144.2 |
584 |
63.0 |
133.1 |
586 |
84.0 |
170.8 |
581 |
70.0 |
144.2 |
584 |
63.0 |
133.1 |
897.4 |
2.9 |
59.79 |
586 |
53.0 |
116.4 |
588 |
46.0 |
106.6 |
590 |
|
315M |
85.0 |
173.1 |
585 |
75.0 |
158.5 |
586 |
100.0 |
203.3 |
582 |
85.0 |
173.1 |
585 |
75.0 |
158.5 |
1109.5 |
3.0 |
70.64 |
586 |
63.0 |
136.8 |
589 |
55.0 |
124.4 |
590 |
|
355M |
100.0 |
198.9 |
592 |
90.0 |
183.4 |
593 |
132.0 |
256.2 |
588 |
100.0 |
198.9 |
592 |
90.0 |
183.4 |
1345.1 |
3.0 |
78.23 |
593 |
75.0 |
158.7 |
594 |
65.0 |
143.1 |
594 |
|
355L1 |
125.0 |
242.8 |
591 |
110.0 |
216.2 |
592 |
160.0 |
310.6 |
588 |
125.0 |
242.8 |
591 |
110.0 |
216.2 |
1483.6 |
2.8 |
84.60 |
592 |
92.0 |
187.8 |
593 |
80.0 |
167.5 |
594 |
|
355L2 |
150.0 |
294.9 |
591 |
132.0 |
262.9 |
592 |
185.0 |
359 |
589 |
150.0 |
294.9 |
591 |
132.0 |
262.9 |
1996.0 |
3.0 |
110.32 |
592 |
110.0 |
227.4 |
594 |
95.0 |
204.2 |
594 |
|
400L1 |
185.0 |
364.6 |
593 |
160.0 |
327.3 |
594 |
236.0 |
458.9 |
591 |
185.0 |
364.6 |
593 |
160.0 |
327.3 |
2451.8 |
3.2 |
86.38 |
594 |
132.0 |
280.7 |
595 |
115.0 |
258.1 |
595 |
|
400L2 |
230.0 |
458.9 |
593 |
200.0 |
409.1 |
594 |
270.0 |
531.4 |
592 |
230.0 |
458.9 |
593 |
200.0 |
409.1 |
3294.0 |
3.3 |
111.75 |
594 |
170.0 |
361.5 |
595 |
145.0 |
325.5 |
595 |
表3
|
工作方式 |
S4及S5 |
|
|
|||||||||||||||||||
|
Duty Type |
150次/时 150starts/hour |
300次/时 300starts/hour |
600次/时 600starts/hour |
转动 |
重量 |
|||||||||||||||||
|
CDF |
25% |
40% |
60% |
40% |
60% |
60% |
惯量 |
|
||||||||||||||
|
项目 |
Rated |
I1 |
n |
Rated |
I1 |
n |
Rated |
I1 |
n |
Rated |
I1 |
n |
Rated |
I1 |
n |
Rated |
I1 |
n |
Moment |
|
||
|
Item |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
output |
Rated |
Speed |
of |
|
||
|
|
current |
|
|
current |
|
|
current |
|
|
current |
|
|
current |
|
|
current |
|
inertia |
Weight |
|||
|
机座号 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Jm |
|
|||
|
Frame size |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
kW |
A |
r/min |
(kg-m2) |
(kg) |
||
|
1500转/分 1500r/min |
||||||||||||||||||||||
|
112M1 |
3.0 |
6.9 |
1394 |
2.8 |
6.4 |
1403 |
2.2 |
5.2 |
1456 |
2.2 |
5.2 |
1456 |
2.0 |
5.0 |
1434 |
1.8 |
4.76 |
1441 |
0.025 |
61 |
||
|
112M2 |
4.0 |
9.5 |
1422 |
3.7 |
9.5 |
1428 |
2.8 |
7.8 |
1446 |
2.8 |
7.8 |
1446 |
2.5 |
7.6 |
1452 |
2.2 |
7.3 |
1457 |
0.026 |
69 |
||
|
132M1 |
5.8 |
13.1 |
1440 |
5.0 |
11.7 |
1449 |
4.8 |
11.4 |
1451 |
4.8 |
11.4 |
1451 |
4.5 |
11.0 |
1454 |
3.8 |
10.17 |
1461 |
0.042 |
86 |
||
|
132M2 |
6.6 |
14.2 |
1432 |
5.7 |
12.5 |
1442 |
5.4 |
12.0 |
1446 |
5.4 |
12.0 |
1446 |
5.1 |
11.5 |
1449 |
4.3 |
10.2 |
1457 |
0.044 |
98 |
||
|
160M1 |
7.5 |
15.0 |
1448 |
7.0 |
14.2 |
1452 |
6.0 |
12.4 |
1459 |
6.0 |
12.4 |
1459 |
5.5 |
11.7 |
1463 |
4.0 |
9.5 |
1473 |
0.11 |
120 |
||
|
160M2 |
10.0 |
19.8 |
1452 |
9.0 |
17.8 |
1457 |
8.0 |
16.4 |
1462 |
8.0 |
16.4 |
1462 |
7.0 |
14.9 |
1467 |
5.9 |
13.4 |
1472 |
0.13 |
125 |
||
|
160L |
14.0 |
27.4 |
1453 |
13.0 |
25.8 |
1457 |
11.0 |
22.6 |
1464 |
11.0 |
22.6 |
1464 |
10.0 |
21.1 |
1467 |
9.0 |
19.7 |
1470 |
0.15 |
145 |
||
|
180L |
20.0 |
41.7 |
1463 |
18.0 |
37.5 |
1467 |
17.0 |
36.3 |
1469 |
17.0 |
36.3 |
1469 |
15.0 |
33.3 |
1472 |
11.0 |
28.5 |
1479 |
0.25 |
195 |
||
|
200L |
28.0 |
53.1 |
1470 |
25.0 |
48.5 |
1474 |
22.0 |
43.7 |
1477 |
22.0 |
43.7 |
1477 |
20.0 |
44.3 |
1479 |
15.0 |
33.8 |
1484 |
0.41 |
310 |
||
|
225M |
34.0 |
63.8 |
1471 |
33.0 |
62.6 |
1472 |
30.0 |
57.6 |
1474 |
28.0 |
55.0 |
1476 |
26.0 |
51.7 |
1478 |
20.0 |
42.8 |
1483 |
0.51 |
340 |
||
|
250M1 |
42.0 |
77.0 |
1461 |
37.0 |
67.89 |
1466 |
36.0 |
66.0 |
1467 |
33.0 |
61.2 |
1470 |
33.0 |
61.2 |
1470 |
27.0 |
50.7 |
1475 |
0.89 |
424 |
||
|
250M2 |
55.0 |
99.8 |
1457 |
47.0 |
85.2 |
1464 |
42.0 |
76.2 |
1468 |
42.0 |
76.2 |
1468 |
40.0 |
72.6 |
1469 |
35.0 |
64.0 |
1473 |
1.03 |
519 |
||
|
280S1 |
63.0 |
111.8 |
1475 |
60.0 |
107.7 |
1476 |
55.0 |
98.7 |
1478 |
50.0 |
90.7 |
1480 |
45.0 |
81.7 |
1482 |
45.0 |
81.7 |
1482 |
1.85 |
755 |
||
|
280S2 |
75.0 |
133.1 |
1474 |
70.0 |
124.3 |
1476 |
65.0 |
115.4 |
1478 |
55.0 |
98.7 |
1481 |
50.0 |
90.8 |
1483 |
50.0 |
90.8 |
1483 |
2.0 |
785 |
||
|
280M |
85.0 |
150.9 |
1475 |
80.0 |
140.5 |
1477 |
75.0 |
133.2 |
1478 |
70.0 |
124.3 |
1480 |
65.0 |
116.7 |
1481 |
60.0 |
107.7 |
1483 |
2.2 |
860 |
||
|
315S |
102.0 |
179.2 |
1461 |
90.0 |
158.1 |
1466 |
80.0 |
140.5 |
1470 |
75.0 |
133.1 |
1472 |
68.0 |
122.1 |
1474 |
55.0 |
99.9 |
1479 |
4.2 |
900 |
||
|
315M |
125.0 |
217.2 |
1467 |
120.0 |
210.8 |
1468 |
115 |
203 |
1470 |
105.0 |
185.3 |
1472 |
100.0 |
175.6 |
1474 |
90.0 |
159.8 |
1477 |
4.9 |
1193 |
||
|
1000转/分 1000r/min |
||||||||||||||||||||||
|
112M1 |
1.6 |
4.32 |
940 |
1.3 |
3.8 |
952 |
1.0 |
3.4 |
962 |
1.2 |
3.6 |
955 |
0.9 |
3.3 |
965 |
0.7 |
3.1 |
971 |
0.023 |
68 |
||
|
112M2 |
2.2 |
5.6 |
935 |
2.0 |
5.2 |
942 |
1.7 |
4.8 |
951 |
1.8 |
5.0 |
948 |
1.6 |
4.7 |
954 |
1.3 |
4.2 |
962 |
0.026 |
72 |
||
|
132M1 |
3.0 |
7.4 |
958 |
2.8 |
7.1 |
961 |
2.2 |
6.2 |
970 |
2.2 |
6.2 |
970 |
2.1 |
6.0 |
971 |
1.8 |
5.7 |
975 |
0.045 |
84 |
||
|
132M2 |
3.7 |
9.03 |
964 |
3.5 |
8.54 |
966 |
2.8 |
7.7 |
973 |
3.3 |
8.3 |
968 |
2.8 |
7.7 |
973 |
2.7 |
7.6 |
974 |
0.051 |
93 |
||
|
160M1 |
5.8 |
12.1 |
964 |
5.0 |
11.4 |
970 |
4.8 |
10.3 |
971 |
4.8 |
10.3 |
971 |
4.5 |
9.8 |
973 |
3.8 |
8.7 |
977 |
0.12 |
120 |
||
|
160M2 |
7.5 |
15.7 |
969 |
7.0 |
14.7 |
971 |
6.0 |
13.2 |
975 |
6.0 |
13.2 |
975 |
5.5 |
12.4 |
977 |
4.0 |
10.4 |
983 |
0.149 |
125 |
||
|
160L |
11.0 |
22.3 |
967 |
10.0 |
20.7 |
971 |
8.0 |
17.2 |
977 |
8.0 |
17.2 |
977 |
7.5 |
16.6 |
978 |
5.9 |
14.3 |
983 |
0.190 |
192 |
||
|
180L |
15.0 |
32.3 |
974 |
13.0 |
29.4 |
978 |
12.0 |
27.9 |
980 |
12.0 |
27.9 |
980 |
11.0 |
26.6 |
981 |
9.0 |
23.8 |
985 |
0.370 |
200 |
||
|
200L |
21.0 |
43.2 |
975 |
18.5 |
39.5 |
978 |
17.0 |
37.2 |
980 |
17.0 |
37.2 |
980 |
15.0 |
34.6 |
982 |
11.0 |
29.8 |
987 |
0.63 |
290 |
||
|
225M |
28.0 |
55.6 |
975 |
25.0 |
49.6 |
977 |
22.0 |
45.3 |
980 |
22.0 |
45.3 |
980 |
20.0 |
42.6 |
982 |
15.0 |
35.2 |
986 |
0.78 |
345 |
||
|
250M1 |
33.0 |
61.9 |
985 |
30.0 |
60.4 |
986.5 |
28.0 |
54.4 |
987 |
26.0 |
51.1 |
988 |
25.0 |
49.7 |
988 |
17.5 |
39.4 |
992 |
1.41 |
481 |
||
|
250M2 |
42.0 |
77.9 |
983 |
37.0 |
70.2 |
985 |
33.0 |
64.1 |
987 |
31.0 |
60.9 |
988 |
30.0 |
58.9 |
988 |
24.0 |
50.2 |
990 |
1.63 |
577 |
||
|
280S1 |
52.0 |
96.4 |
982 |
45.0 |
84.4 |
984 |
42.0 |
78.8 |
985 |
40.0 |
75.1 |
986 |
37.0 |
70.2 |
987 |
30.0 |
59.7 |
989 |
2.0 |
730 |
||
|
280S2 |
59.0 |
109.5 |
984 |
51.0 |
96.8 |
986 |
48.0 |
91.1 |
987 |
45.0 |
87.5 |
988 |
42.0 |
82.6 |
989 |
34.0 |
70.3 |
991 |
2.4 |
970 |
||
|
280M |
70.0 |
128.4 |
983 |
62.0 |
115.1 |
985 |
55.0 |
104.4 |
987 |
52.0 |
99.9 |
987 |
47.0 |
92.5 |
989 |
37.0 |
77.4 |
991 |
2.8 |
970 |
||
|
315S |
84.0 |
154.1 |
982 |
74.0 |
138.9 |
984 |
66.0 |
125.3 |
986 |
62.0 |
119.1 |
987 |
56.0 |
110.2 |
988 |
44.0 |
92.1 |
990 |
5.4 |
1061 |
||
|
315M |
102.0 |
183.1 |
979 |
90.0 |
163.3 |
982 |
80.0 |
146.8 |
984 |
75.0 |
139.2 |
985 |
68.0 |
127.6 |
986 |
53.0 |
104.3 |
989 |
6.4 |
1102 |
||
表4
|
工作方式 |
S4及S5 |
|
|
|||||||||||||||||
|
Duty Type |
150次/时 150starts/hour |
300次/时 300starts/hour |
||||||||||||||||||
京公网安备 11010802043282号
