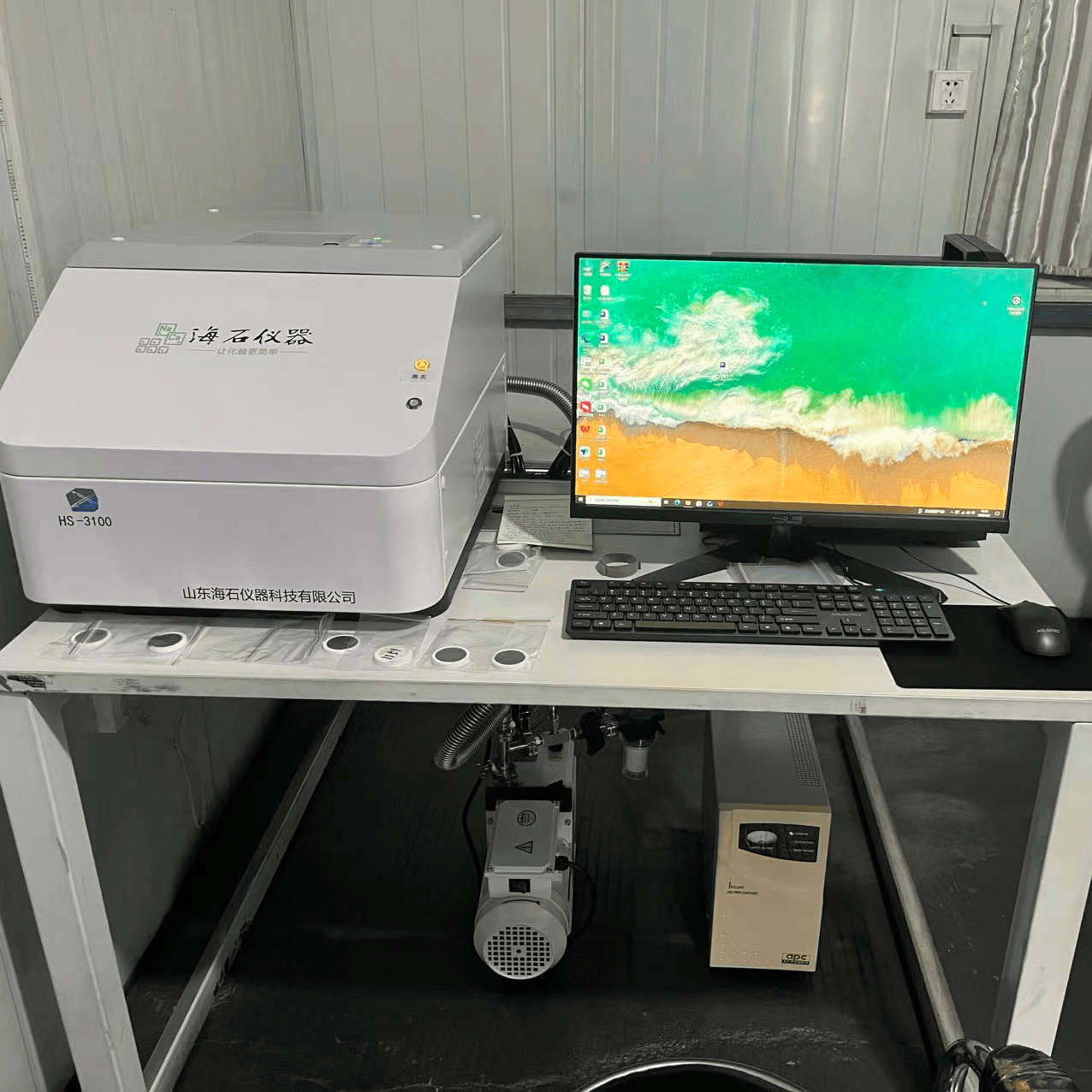

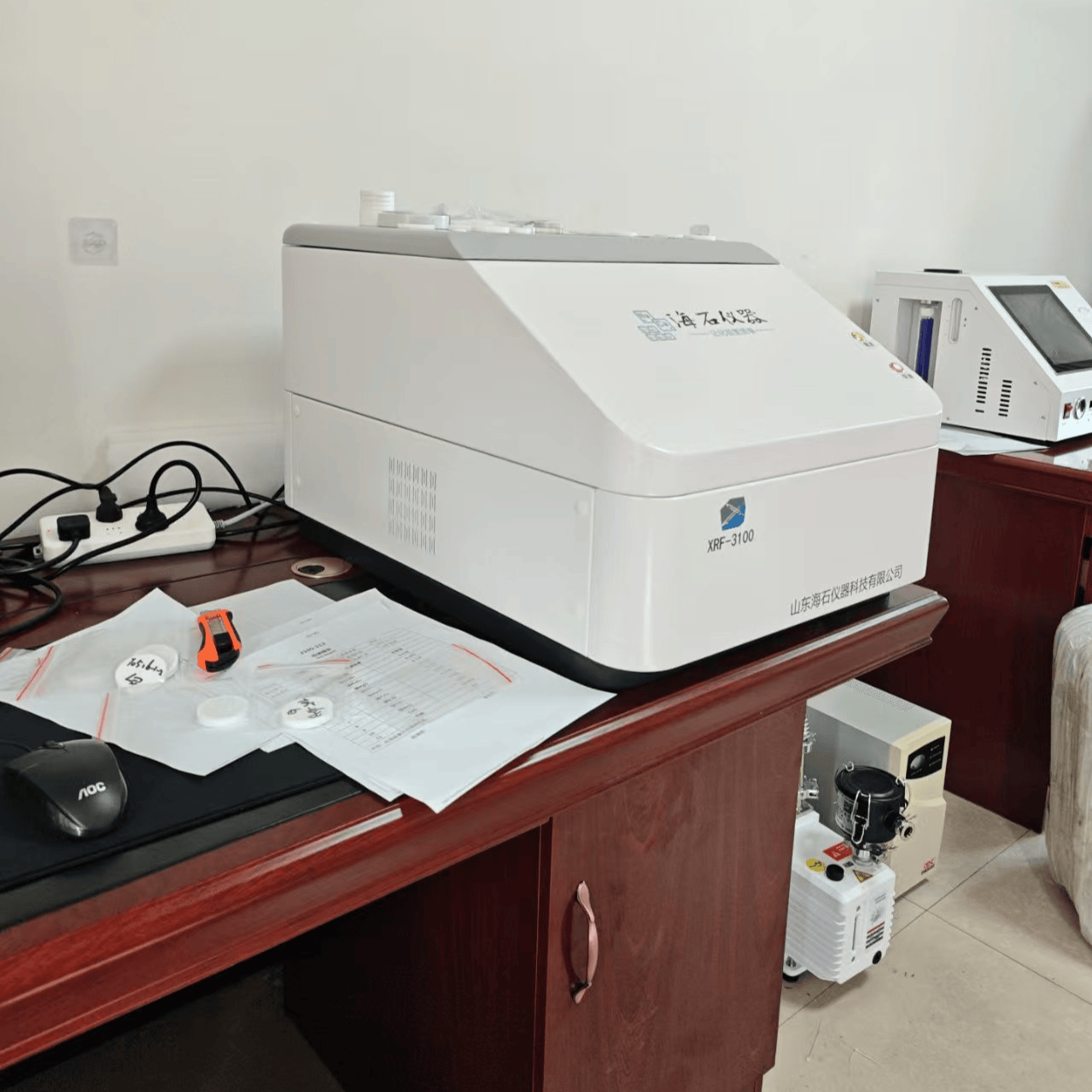

X-ray fluorescence spectrometer HS-3100

Model

HS-3100

Element range

11#钠（Na）-92#铀(u)

Optical System

It is the first of its kind in China to create a compact coupled optical path

The new compact coupled optical path adopted by the high-sensitivity technology enables the XT3 series to have extremely excellent precision. The advanced design ensures that the fluctuation range of the analysis results is very narrow, thereby reducing light consumption and increasing light benefits.

The distance between the X-ray tube of the 3100 series and the sample, as well as between the sample and the detector, is significantly shorter than that of the previous instrument. Therefore, the 3100 series has less light loss and better performance.

Amplifiers and signal processors

Pulse multi-channel analysis system, enhancing pulse amplitude by more than twice

High-voltage power supply

50KV/1mA High-voltage control and detection system

Filter and stepper motor control system

It is controlled by Siemens PLC modules, featuring higher precision, extremely low failure rate and convenient functional upgrades

Mechanical structure of the mainframe

The private design is more conducive to protecting the stable operation of each institution

Spectrometer electronics system

The enhanced signal processing and data acquisition system features fast processing speed and high precision

1 second / 1.9 million times

Content Range

PPM-100%

Primary Filter

6-10 bit automatic filter; A variety of composite materials are suitable for different material testing and can adapt to a wide range of elemental analysis

X -ray tube

Rh anode target；

Maximuum     power     50W；Maximum voltage 50KV

Measurement mode

Vacuum mode: Reduces operating costs and enhances the performance of light element analysis

Air mode

Sample testing

Automatic rotation system to eliminate sample inhomogeneity (optional)

Software algorithm

The no-standard sample analysis method (optional) can analyze the content of elements without the need for standard substances

Standard curve method, theoretical coefficient method, basic parameter method, etc

Power supply

220V    50Hz

Work Environment

Temperature range：5—30℃    Humidity≤80%

Dimensions

Length*Width*Height  680mmx480mmx360mm

Weight:   35kg

Ø Electrically cooled FAST-SDD semiconductor detector

Ø Typical resolution: 123ev

Ø Output count rate 3000KCPS

Ø Peak-to-back ratio ≥25000:1, and peak-to-tail ratio > 1800.

Ø Features of the window: The ultra-thin window with 1μm carbon window increases the signal acquisition intensity of light elements.

Ø Processor: Original 10K imported multi-channel data acquisition system

Ø High voltage: 0-50Kv continuously adjustable

Ø Current: 0-4000uA continuously adjustable

Ø Power: 50W

Ø Stability: 0.2% after 8 hours

Ø Input voltage: 24VDC

Ø Input current: 4A

Ø Output voltage: 50Kv, 0-4MA

Ø Maximum power: 50W

Ø Stability: 8 hours 0.05%

Ø 16 bit analog-to-digital converter

Ø 24-inch display

Ø Brand computer

Ø 512G solid-state drive

Ø Multifunctional standard keyboard

Ø Laser printer

Ø Length * width * height:680mm*480mm*360mm

Ø Weight: approximately 35kg(main unit)

Ø 220V±10% 50Hz

Ø Temperature range: 5-30 ℃.

Ø Relative humidity ≤ 80%
