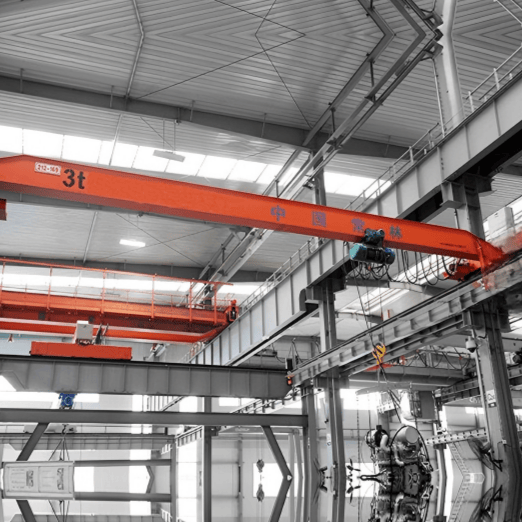

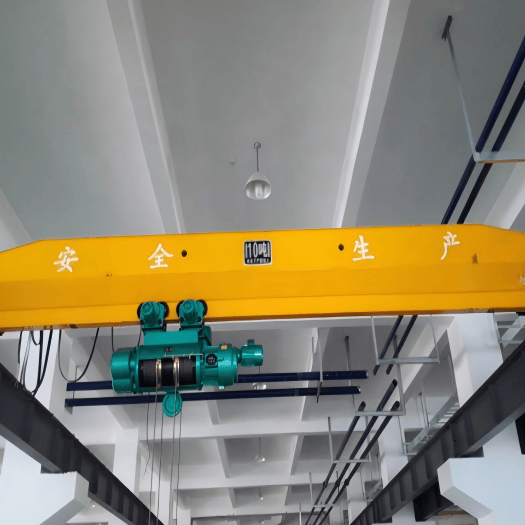

防爆梁式起重机（以下简称防爆起重机）是以防爆电动葫芦作为起升机构，具有防爆特性的起重机械，可在爆炸性环境中以间歇、重复方式装卸和搬运物料及设备，具备垂直升降、纵向和横向移动功能。取物装置为吊钩或其它专用吊具，以满足用户吊运多种类型物料的需求。
型式实验规格：LB
型式试验产品名称：防爆梁式起重机
1/3
视频
防爆电动单梁起重机
EXW
¥10,000.00-44,000.00 /套
产品介绍
技术参数
| Max. Lifting Height | 30M | Power | 50 Hz, 60 Hz, Customized |

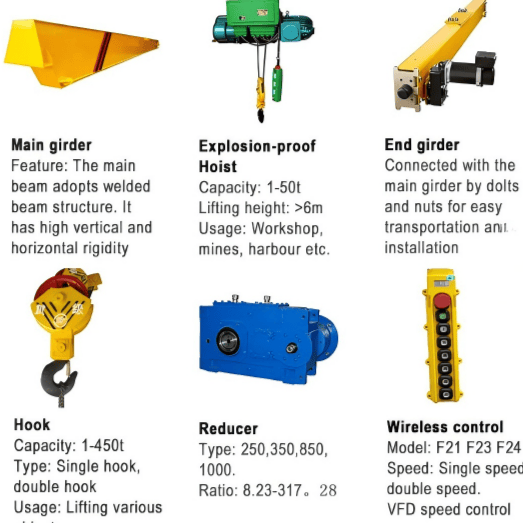

| Make | KUANGYUAN | Core Components | Main beam, End carriage, Electrics, Motor, Explosion-proof wire rope hoist, Other |
| Rated Lifting Moment | Customized | Max. Lifting Load | 0.5Ton, 1Ton, 2Ton, 3Ton, 5Ton, 10Ton, 16Ton, 20Ton, Customized |
| Span | 6M~30M | Application | Explosion-proof,Explosion-proof Dust Workshop |
| Product Name | Explosion Proof Electric Single Girder Crane | Model | LB |
| Work Duty | A3~A4 | Lifting Capacity | 1 Ton-20 Ton |
| Lifting speed | 0.8/8m/min;0.7/7m/min;0.35/3.5m/min | Power Source | 3 Phase 380V 50hz/Custmized |
| Explosion Proof Grade | Exd II BT4; Exd II CT4 | Working Temperature | -20~+40 Degree |
| Control model | Wire Control+Remote Control | Certification | CE ISO |
