CBQL-*5/F5 双联齿轮油泵
应用高强度铝合金材料，重量轻，安装方便
轴向间隙自动补偿机构，径向液压平衡，保持油泵高容积效率
采用自润滑轴承，提高泵的承载能力
进、出油口联接形式有螺纹、法兰等可供选择
输入轴联接形式可选择平键、矩形花键
1/4

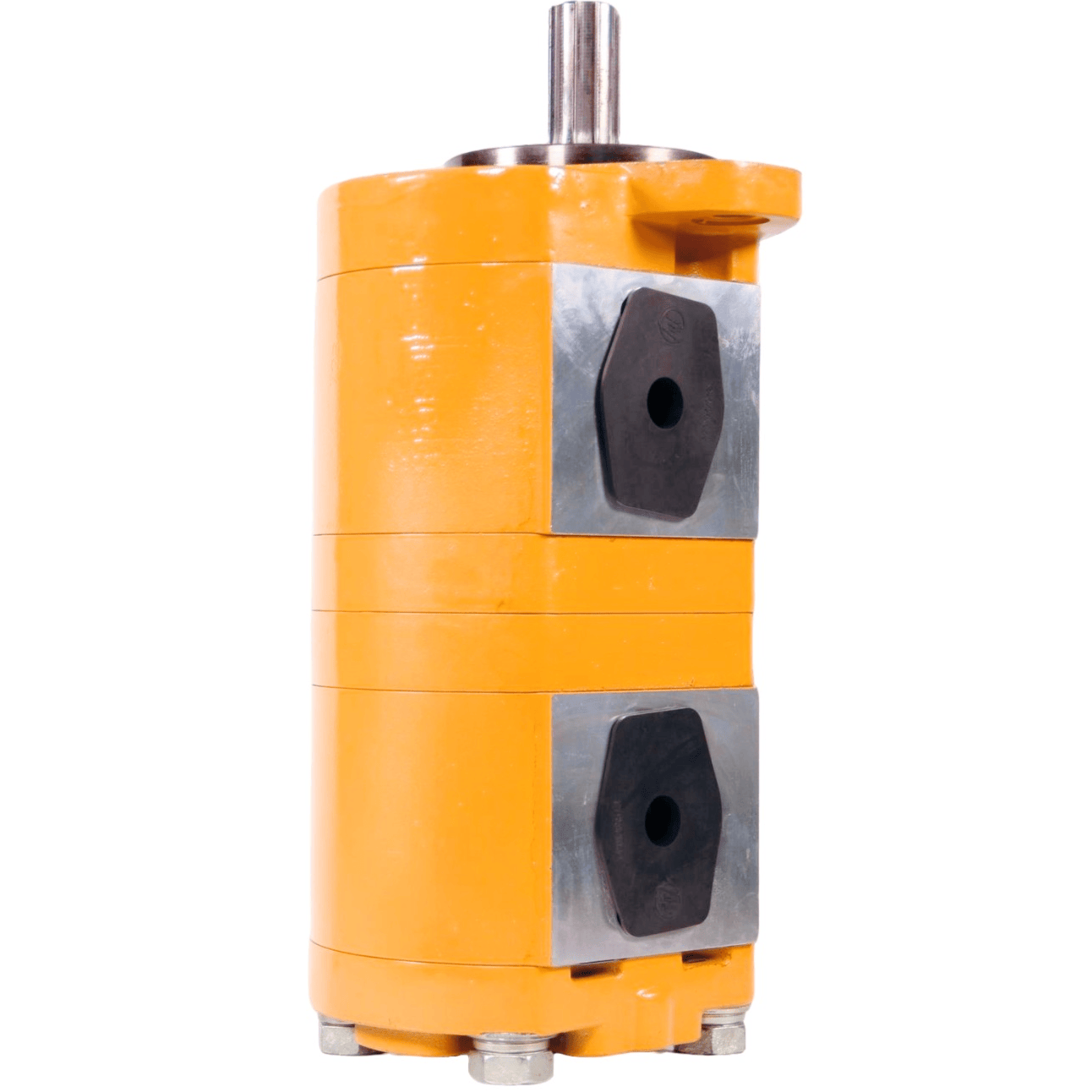

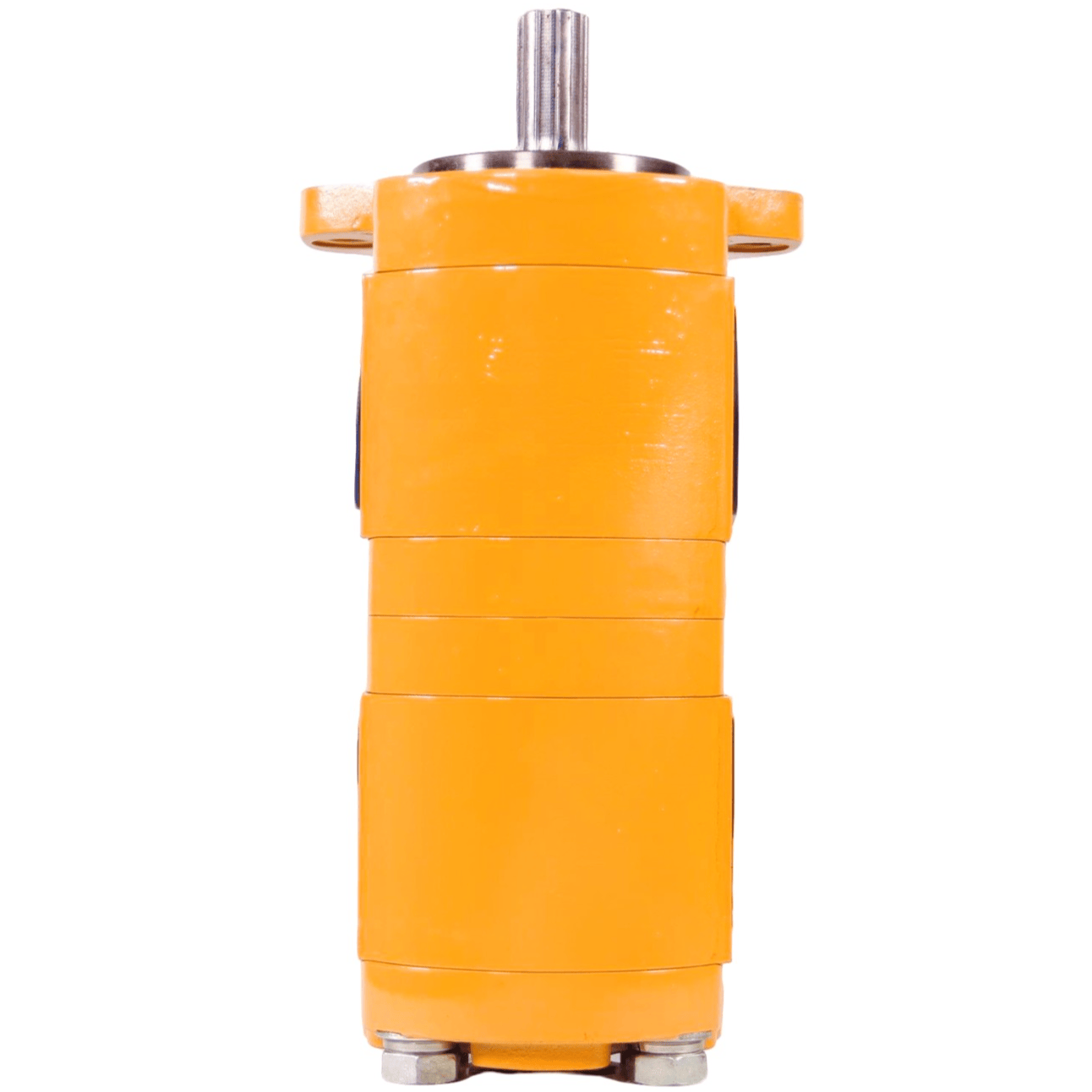

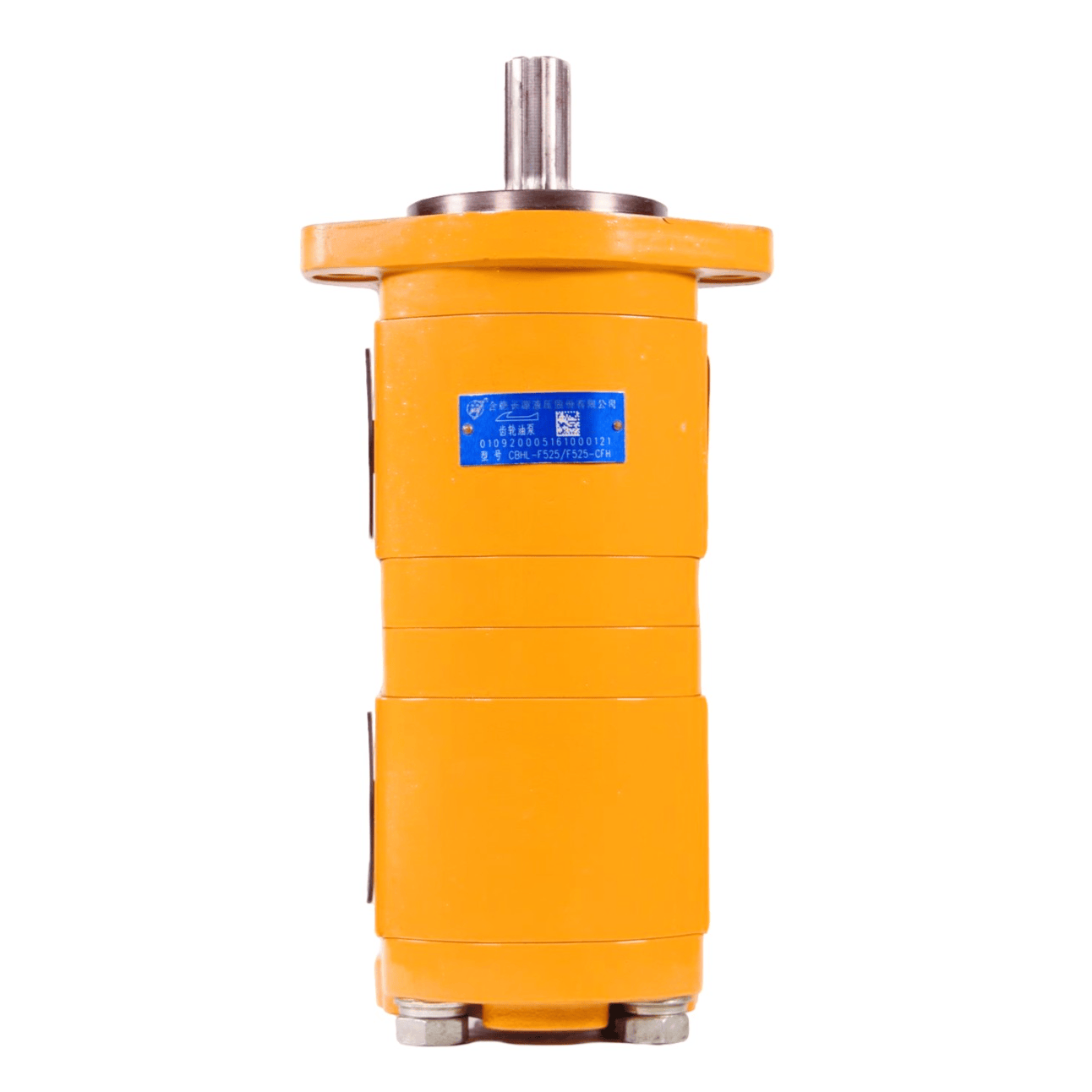

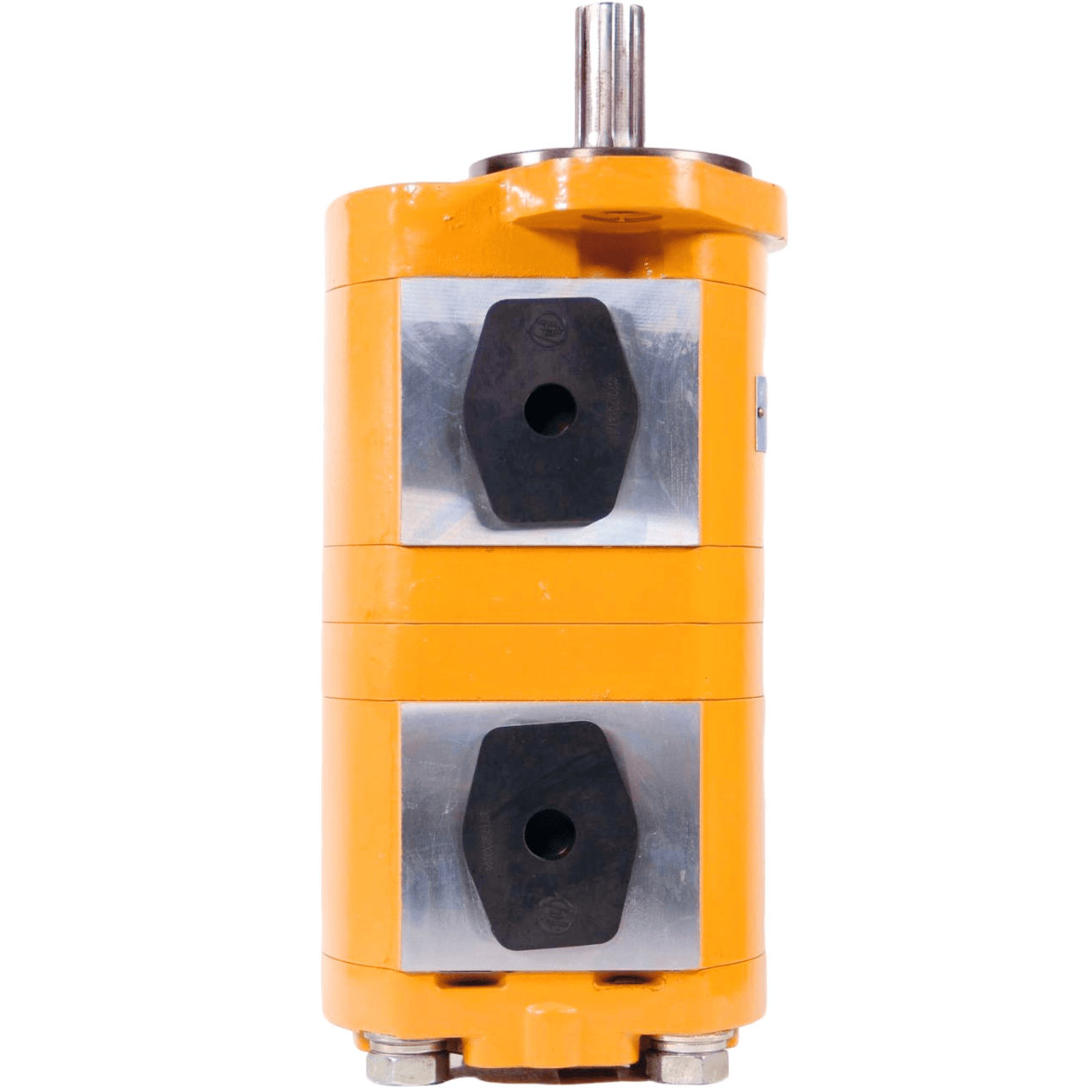

双联齿轮泵 CBQL-*5/F5系列
EXW
¥1,000.00-2,000.00 /台
产品介绍
技术参数
| 型号 | 公称排量 (mL/r) |
压力yalisure (bar) |
转速 (r/min) |
容积效率 (≥%) |
重量 (kg) |
|||
| Rated | Max. | Min. | Rated | Max. | ||||
| CBQL-F520/F520-CFH* | 20/20 | 200/200 | 250/250 | 600 |
2500 |
3000 |
93/92 | 13.0 |
| CBQL-F525/F525-CFH* | 25/25 | 14.0 | ||||||
| CBQL-F525/F520-CFH* | 25/20 | 13.5 | ||||||
| CBQL-F5232/F532-CFH* | 32/32 | 93/93 | 15.4 | |||||
| CBQL-F532/F525-CFH* | 32/25 | 93/92 | 14.7 | |||||
| CBQL-F532/F520-CFH* | 32/20 | 14.2 | ||||||
| CBQL-F540/F540-CFH* | 40/40 | 93/93 | 17.0 | |||||
| CBQL-F540/F532-CFH* | 40/32 | 16.2 | ||||||
| CBQL-F540/F525-CFH* | 40/25 | 93/92 | 15.5 | |||||
| CBQL-F540/F520-CFH* | 40/20 | 15.0 | ||||||
| CBQL-F550/F540-CFH* | 50/40 | 93/93 | 18..0 | |||||
| CBQL-F550/F532-CFH* | 50/32 | 17.2 | ||||||
| CBQL-F550/F525-CFH* | 50/25 | 93/92 | 16.5 | |||||
| CBQL-E550/F520-CFH* | 50/20 | 16.0 | ||||||
| CBQL-E563/F532-CFH* | 63/32 | 160/200 | 200/250 | 600 | 2000 | 2500 | 93/93 | 18.5 |
| CBQL-E563/F525-CFH* | 63/25 | 93/92 | 17.8 | |||||
| CBQL-E563/F520-CFH* | 63/20 | 17.3 | ||||||
