Overview of Hardware Parameters
|
|

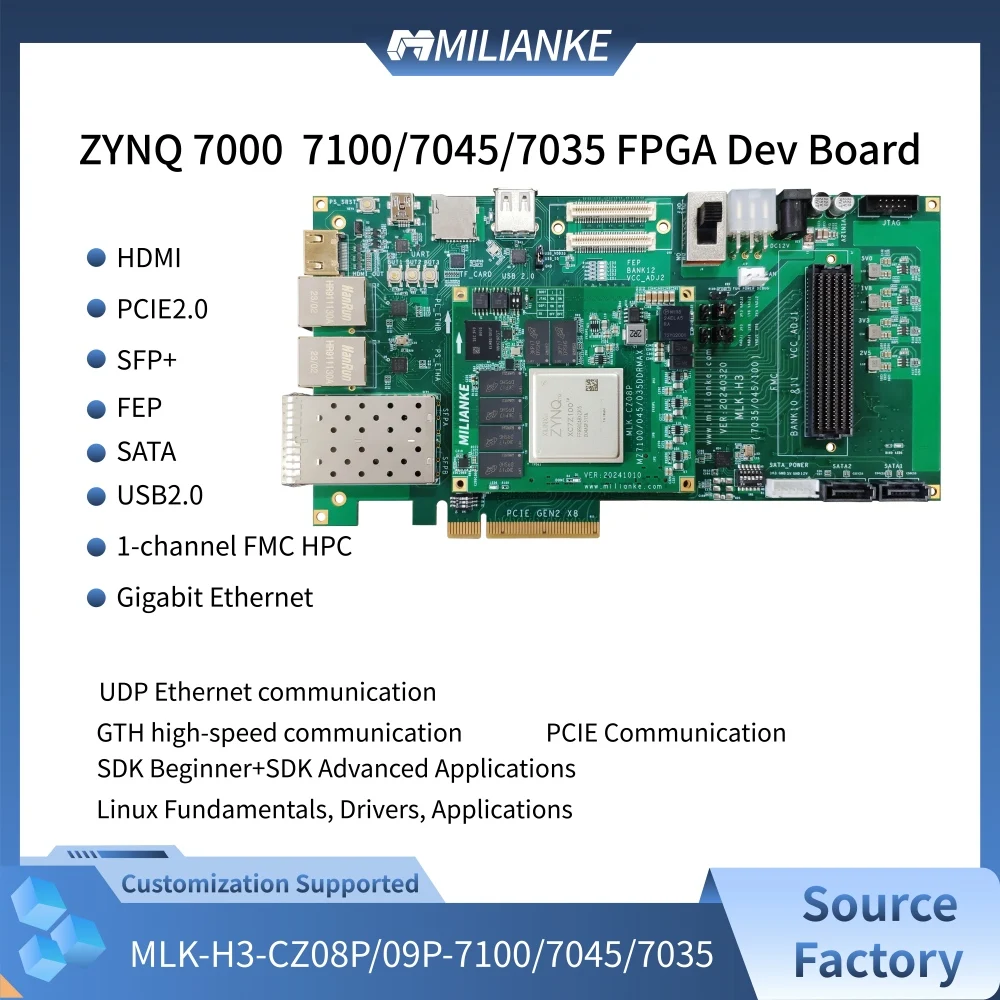

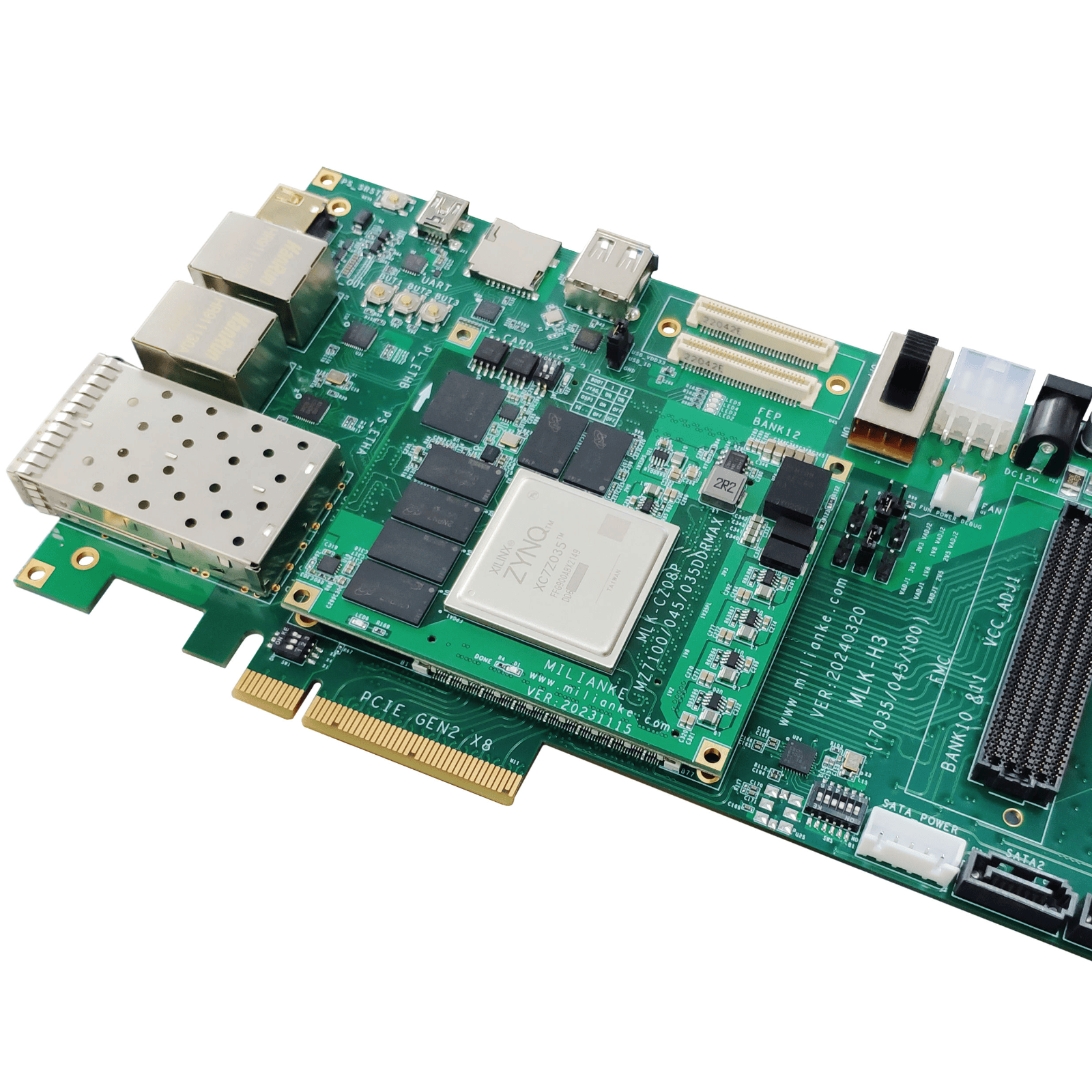

MLK-H3-CZ08P hardware parameters
|
||||
|
SOC Model
|
MLK-H3-CZ08P hardware parameters
|
|||
|
Main parameters of ARM
|
Cortex-A9 dual core clock frequency800MHz
|
|||
|
|
Model
|
XC7Z100FFG900-2I
|
XC7Z045FFG900-21
|
XC7Z035FFG900-21
|
|
Architecture
|
Kintex7
|
Kintex7
|
Kintex7
|
|
|
Speed level
|
-2
|
-2
|
-2
|
|
|
Logic Cells
|
444K
|
350K
|
275K
|
|
|
LUTs
|
277400
|
218600
|
171900
|
|
|
Block RAM(#36kb Blocks)
|
26.5Mb
|
19.1Mb
|
17.6Mb
|
|
|
DSP(DSP slices)
|
2020
|
900
|
900
|
|
|
Flip-flops
|
554800
|
437200
|
343800
|
|
|
XADC
|
Not exported, cannot be used
|
Not exported, cannot be used
|
Not exported,cannot be used
|
|
|
GTX Transceivers
|
16 pairs
|
16 pairs
|
16 pairs
|
|
Core power supply
|
1.0V power supply with a maximum output of 24A
|
|||
|
PS DDR
|
DDR3L 1GB 1066MHz*32bits
|
|||
|
PL DDR
|
DDR3L 2GB 1600MHz*64bits
|
|||
|
EMMC
|
16GB
|
|||
|
SD card
|
1-channel TF card interface
|
|||
|
FLASH
|
256Mbit QSPI-Flash
|
|||
|
PS crystal oscillator
|
33.33333MHz (on core module)
|
|||
|
PL crystal oscillator
|
Differential 100MHz (on core module)
|
|||
|
FMC Expansion Port
|
Can connect various FMC modules of Xilinx. Contains 36 pairs of differential signals and a set of GTX transceivers MGT109BANK.
Differential signals support voltage ADJ, which can be adjusted using jumper caps |
|||
|
FEP Expansion Port
|
FEP high-speed expansion interface, HR BANK, 96GPIO/48 differential, adjustable voltage ADJ2 using jumper cap
|
|||
|
GTX crystal oscillator
|
A programmable clock controlled by a dip switch, connected to MGT111 REFCLK1 and MGT110 REFCLK1 2 Programmable clock controlled by
IIC, connecting MGT109 REFCLK1 and MGT110 REFCLK0 (default not soldered) |
|||
|
SFP+
|
2-channel SFP+interface, single channel supports up to 10.3125Gbps, using MGT110 BANK
|
|||
|
PCIE interface
|
PCIE2.0 X8 uses MGT111BANK and MGT112BANK
|
|||
|
SATA
|
2 channel , Using MGT110 BANK
|
|||
|
Gigabit Ethernet
|
PS end 1 Gigabit Ethernet RJ45 interface, PL end 1 Gigabit Ethernet RJ45 interface
|
|||
|
HDMI
|
1 HDMI output, supports DVI1.0/HDMI 1.0 protocols, maximum output 1080@60fps
|
|||
|
USB 2.0
|
1 USB 2.0 interface, providing jumper cap to support USB OTG and USB host
|
|||
|
USB serial port
|
Bottom board 1 PS end USB to serial port, MiniUSB interface
|
|||
|
EEPROM
|
Route 1 24LC02
|
|||
|
RTC
|
Route 1 DS1337
|
|||
|
Button
|
3
|
|||
|
LED
|
5
|
|||
|
JTAG interface
|
1 route, use downloader for debugging and downloading
|
|||
