Exhaust System Engine Parts Catalytic Converter Square or Cylindrical Vanadium-SCR/Fe-SCR /Cu-SCR Cordierite DPF/Silicon Carbide Cdpf Catalyst

EXW
¥204.34-3,405.60 /PC
中国江苏省
钱桥配套区庙塘桥藕杨路158号
86-15961810038
在线沟通
收藏
产品介绍

Product Introduction

Flow-through honeycomb ceramic substrate mainly includes SCR and DOC ceramic substrate for diesel vehicle exhaust purification, TWC ceramic substrate for gasoline vehicle purification, CNG/LPG catalyst substrate for vehicle and industrial VOC substrate carrier, etc. The cross section shapes are round, square and other special shapes, which are applied to the purification treatment of motor vehicle exhaust after coated with catalyst.



RFQ
Q:What are your main products?
A:Our main products are diesel engine exhaust after-treatment system(SCR system, DPF system etc.), and          parts(Urea Pump,Urea Nozzle,Catalyst Converter, Sensor etc.)

Q:Do you have after-sale service?
A:"Customer first" is the core principle followed by our company, and it is also the super criteria adhered by our after-sales service staff. We  have established comprehensive after-sales service network. With headquarter in Wuxi, we have branch offices  Shanghai, Beijing, Changchun, Zhengzhou, Guangzhou, Changsha, Xuzhou and authorized service center throughout the country. We also provide 24 hours free hotline for customerswith premium quality and efficient after-sales service.

Q:I wonder if you can provide free samples?
A:Whether the sample is free depends on the content of the sample and can be decided after discussion.

Q:What product certifications do you have?
A:ISO9001, CE, E-Mark, RoHS And TS16949

Q:What is the delivery time of your product?
A:Generally, it is about 1 month. The delivery time depends on the quantity of the order.
技术参数

Product Specification for reference and can be customized:

CDPF Cordierite DPF Diameter:
143.8~330.2
(mm)
Square:        150*150
Height:
76.2~177.8(mm) Square:150mm,
200mm,300mm
200CPSI,
300CPSI
Wall flow structure is adopted to capture particulate matter in diesel exhaust.Reduce PM/PN emissions to meet EUO V and VI of road diesel engines,Non road EUO IV and above emission standards.
Silicon carbide CDPF   Diameter:
143.8~330.2
(mm)
Height:
76.2~177.8(mm)
200CPSI,
300CPSI
DOC Diameter:
118.4~330.2(mm);
Square:              100*100,
150*150
Height:
76.2~152.4(mm);
Square:50mm,
100mm,150mm,
200mm,300mm
200CPSI,
300CPSI,  400CPSI,
600CPSI
Oxidation purification of HC, CO and SOF in diesel engine exhaust gas.By oxidizing NO to NO2 in the exhaust gas of diesel engine,Passive regeneration of CDPF was realized by de-oxidizing SOOT.By directly oxidizing fuel HC,Increase CDPF inlet temperature, Realize active regeneration of CDPF.
Suitable for road diesel engine EUO V, EUO VI,Non road EUO IV and above emission standards

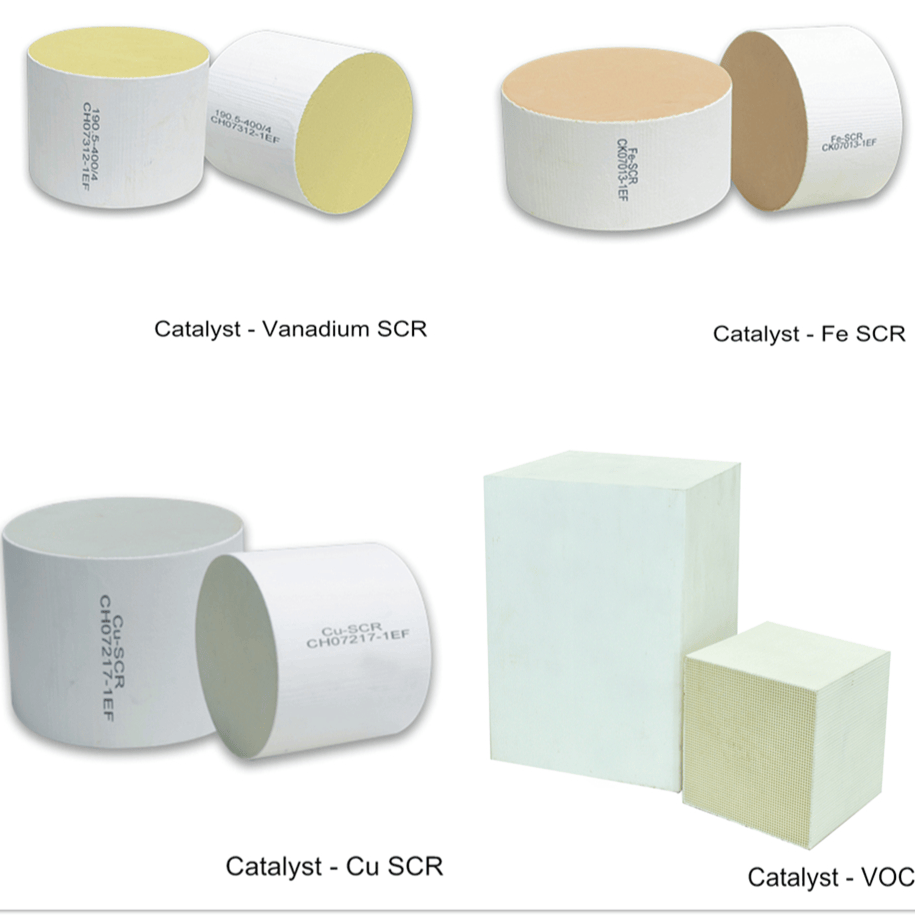

Catalyst - Vanadium SCR Diameter:
118.4~330.2(mm)
Square:                100*100,150*150
Height:
76.2~152.4(mm)
Square:
50mm,100mm,
150mm,200mm,
300mm
200CPSI
300CPSI
400CPSI
It is mainly used to purify NOx in diesel engine exhaust by urea-SCR technology.
It is divided into V-SCR catalytic converter and molecular sieve SCR catalytic converter.
V-scr catalytic converter can meet the requirements of diesel engine road EUO IV,EUO V and EUO IV emission standards for non-road small and medium power diesel engines;
Molecular sieve SCR catalytic converter is mainly used in diesel engine road EUO VI and
Non-road EUO VI and above emission standards.
Catalyst - Cu SCR Diameter:
118.4~330.2(mm)
Square:                100*100,150*150
Height:
76.2~177.8(mm)
Square:
50mm,100mm,
150mm,200mm,
300mm
200CPSI
300CPSI
400CPSI
600CPSI
Catalyst - Fe SCR Diameter:
118.4~330.2(mm)
Square:                100*100,150*150
Height:
76.2~177.8(mm)
Square:
50mm,100mm,
150mm,200mm,
300mm
200CPSI
300CPSI
400CPSI
600CPSI
VOC 100*100(mm)  150*150(mm)

50~300
(mm)
50CPSI
100CPSI
200CPSI
300CPSI
Using high specific surface modified alumina and high performance rare earth oxygen storage material as the second substrate,With precious metals Pt, Pd as the main active ingredient,The integral catalytic converter prepared by the method of high dispersion and uniform distribution,Through catalytic oxidation of all kinds of industrial volatile organic waste gas VOCs, to achieve industrial emission standards, mainly used in catalytic combustion treatment of food, chemical, printing, machinery, automobile manufacturing, petrochemical, organic chemical, pharmaceutical chemical industry emissions containing carbon monoxide, aromatic hydrocarbons, hydrocarbons and oxygen-containing derivatives, etc toxic and harmful organic waste gas.
