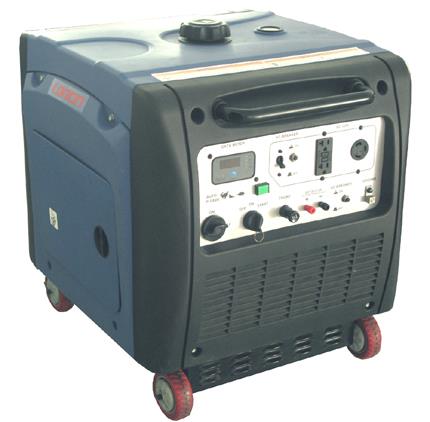

Model 机型LC4300i Alternator Type/电机类型Inverter(变频) Rated output/额定功率(kW)3.5 Max. output/最大功率(kW)4 Rated frequency/额定频率(Hz)50/60 Rated voltage/额定电压(V)230/120 Rated current/额定电流(A)15/30 DC output/直......Model 机型LC4300i Alternator Type/电机类型Inverter(变频) Rated output/额定功率(kW)3.5 Max. output/最大功率(kW)4 Rated frequency/额定频率(Hz)50/60 Rated voltage/额定电压(V)230/120 Rated current/额定电流(A)15/30 DC output/直流输出(V)-(A)12-8.3 AC protector/交流过载保护器Hydraulic-magnetic breaker(液磁断路器) DC protector/直流过载保护器Non-fuse over current protector(无熔丝过流保护器) AC output quality/交流输出质量ISO8528 G2 Waveform aberration rate/波形畸变率%≦5 Phase number/相数Single phase(单相) Power factor/功率因素1 Engine Model/发动机型号LC177FD Engine type/发动机类型Single cylinder，4-stroke，OHV25。inclined，forced air cooling(单缸，四冲程，OHV25。倾斜，强制风冷) Displacement/排量(cc)270 Rated speed/额定转速(rpm)3600 Fuel tank capacity/燃油容积(L) 15 Fuel consumption/燃油消耗率(g/kW.h) ≦374 Oil capacity/机油容积(L) 1.1 Spark plug type/火花塞型号F7RTC/BPR7ES(NGK) Igniting system/点火系统T.C.I Starting system/起动系统Recoil/Electric start(手启动/电启动) Dimension(L×W×H)/外形尺寸(mm)720×590×670 Net weight/净重(kg)79
