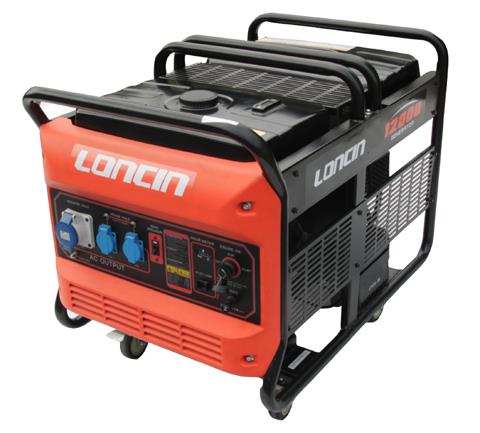

10kW发电机 [LC12000]

Model 机型LC12000 Engine Model/发动机型号LC2V78F-1 Engine Type/发动机类型Air-cooled,4-stroke,OHV90L,V-twin cylinders(风冷，四冲程，OHV90度倾斜，V型双缸) Power output/输出功率(kW)14.7 Bore×Stroke/缸径X行程(mm) 78×71 Compre......Model 机型LC12000 Engine Model/发动机型号LC2V78F-1 Engine Type/发动机类型Air-cooled,4-stroke,OHV90L,V-twin cylinders(风冷，四冲程，OHV90度倾斜，V型双缸) Power output/输出功率(kW)14.7 Bore×Stroke/缸径X行程(mm) 78×71 Compression Ratio/ 压缩比8.5:1 Igniting system/点火系统Transistorized magneto(晶体管无触点点火) Displacement/排量(cc) 680 Fuel tank capacity/燃油容积(L) 25 Oil capacity/机油容积(L) 1.4 Rated frequency/额定频率(Hz)50/60 Rated voltage/额定电压(V)110/115/120/220/230240/380/400/415 Voltage regulator system/调压系统Automatic Voltage Regulation/(自动电压调压) Rated output/额定输出功率(kW)8.5/9.59.0/10.0 Max. output/最大输出功率(kW)9.5/10.510.0/11.0 Power factor/功率因素0.8 Dimension(L×W×H)/外形尺寸(mm)868×635×676 Net weight/净重(kg)170/175
