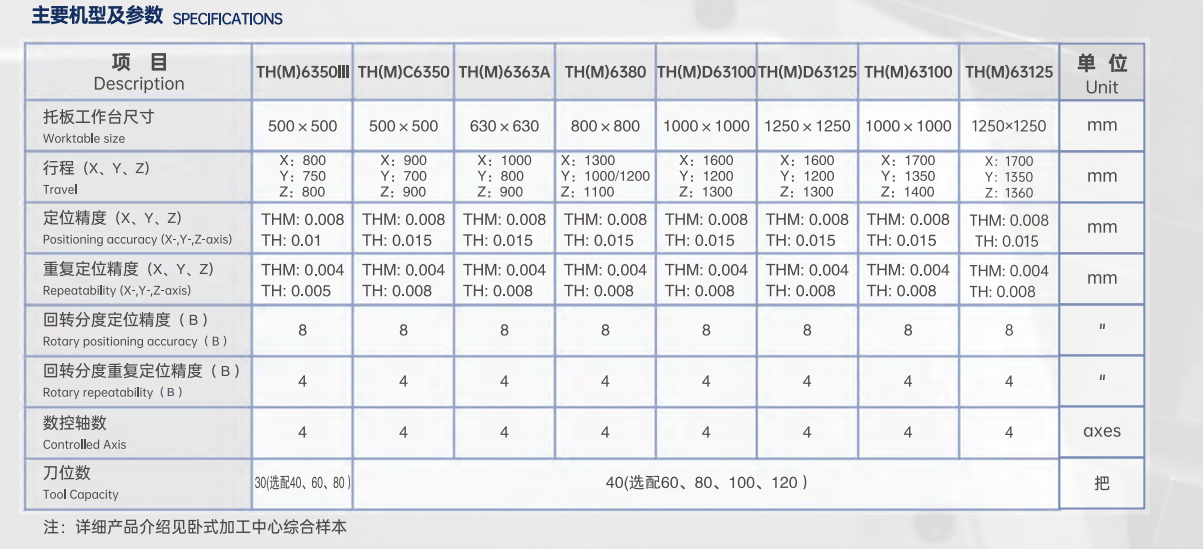

项目 |
TH(M)6350lll |
TH(M)C6350 |
TH(M)6363A |
TH(M)6380 |
TH(M)D63100 |
TH(M)D63125 |
TH(M)63100 |
TH(M)63125 |
单位 |
|
托板工作台尺寸 |
500x500 |
500x500 |
630x630 |
800x800 |
1000x1000 |
1250x1250 |
1000x1000 |
1250x1250 |
mm |
|

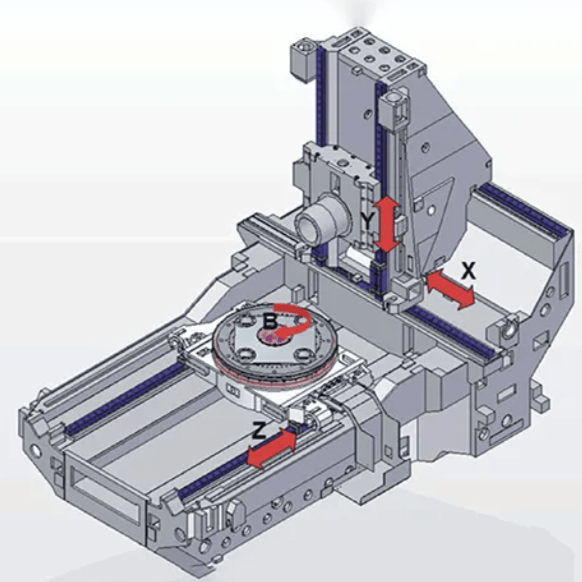

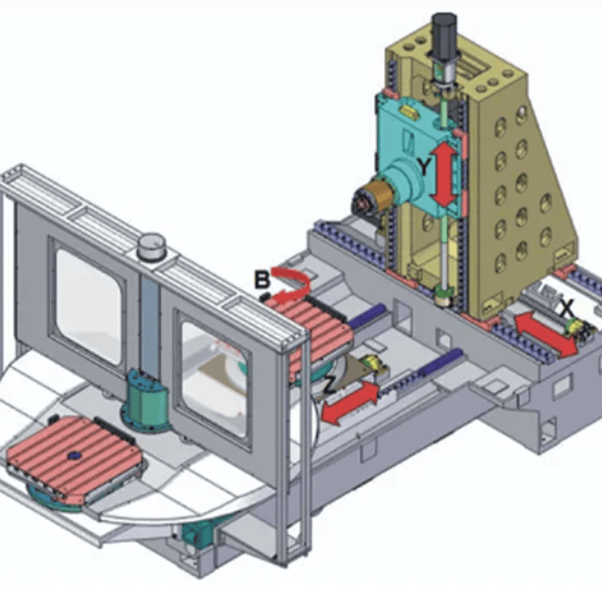

行程(X、Y、Z) |
X:800 Y:750 Z:800 |
X:900 Y:700 Z:900 |
X:1000 Y:800 Z:900 |
X:1300 Y:1000/1200 Z:1100 |
X:1600 Y:1200 Z:1300 |
X:1600 Y:1200 Z:1300 |
X:1700 Y:1350 Z:1400 |
X:1700 Y:1350 Z:1360 |
mm |
|
定位精度(X、Y、Z) |
THM:0.008 TH:0.01 |
THM:0.008 TH:0.015 |
THM: 0.008 TH:0.015 |
THM:0.008 TH:0.015 |
THM:0.008 TH:0.015 |
THM:0.008 TH:0.015 |
THM:0.008 TH:0.015 |
THM:0.008 TH:0.015 |
mm |
|
重复定位精度(X、Y、Z) |
THM:0.004 TH:0.005 |
THM: 0.004 TH:0.008 |
THM:0.004 TH:0.008 |
THM: 0.004 TH:0.008 |
THM: 0.004 TH: 0.008 |
THM:0.004 TH:0.008 |
THM:0.004 TH:0.008 |
THM:0.004 TH:0.008 |
mm |
|
回转分度定位精度(B) |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
1 |
|
回转分度重复定位精度(B) |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
日 |
|
数控轴数 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
axes |
|
刀位数 |
30(选40、60、80) |
40(选配60、80、100、120) |
把 |
||||||
详细产品介绍见卧式加工中心综合样本
