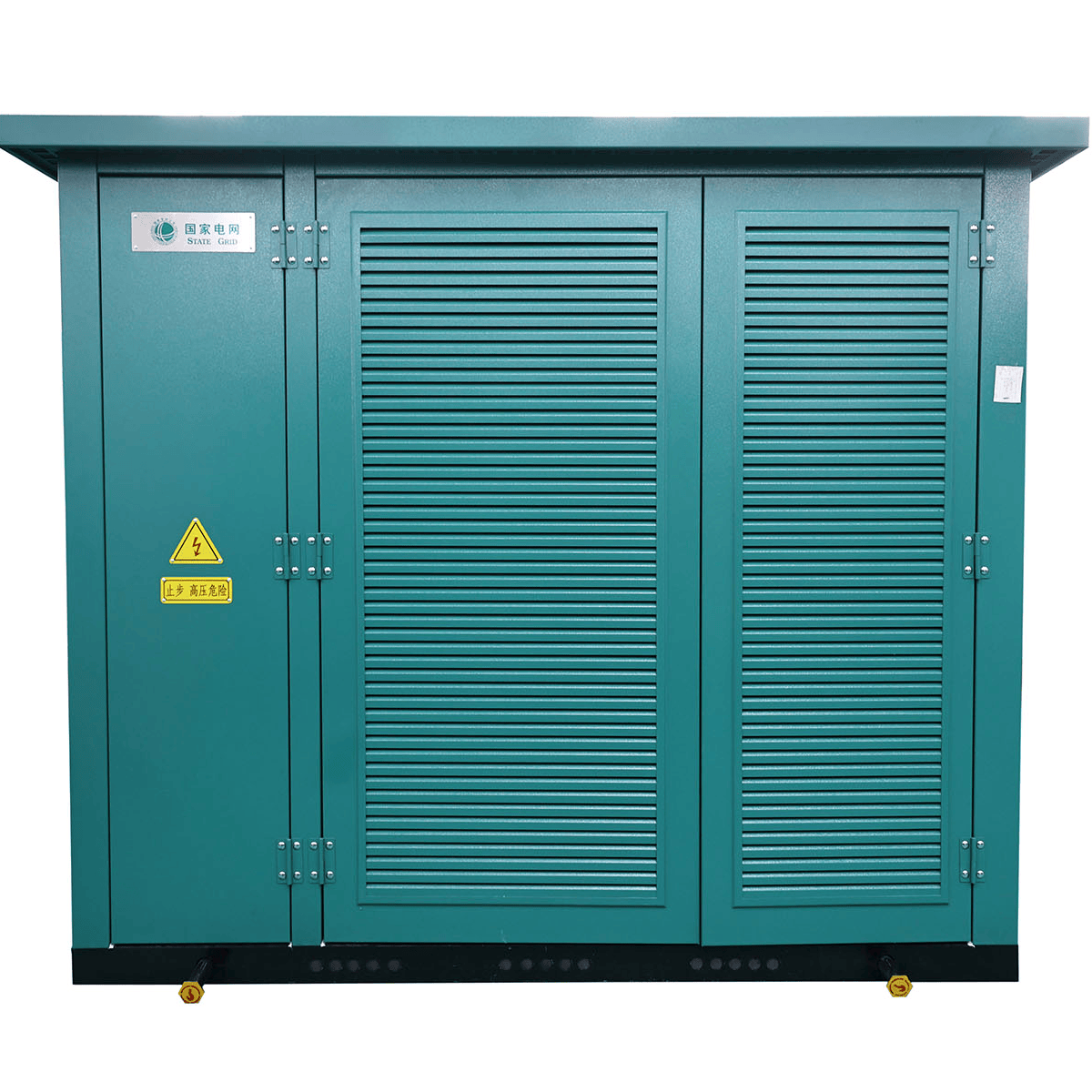

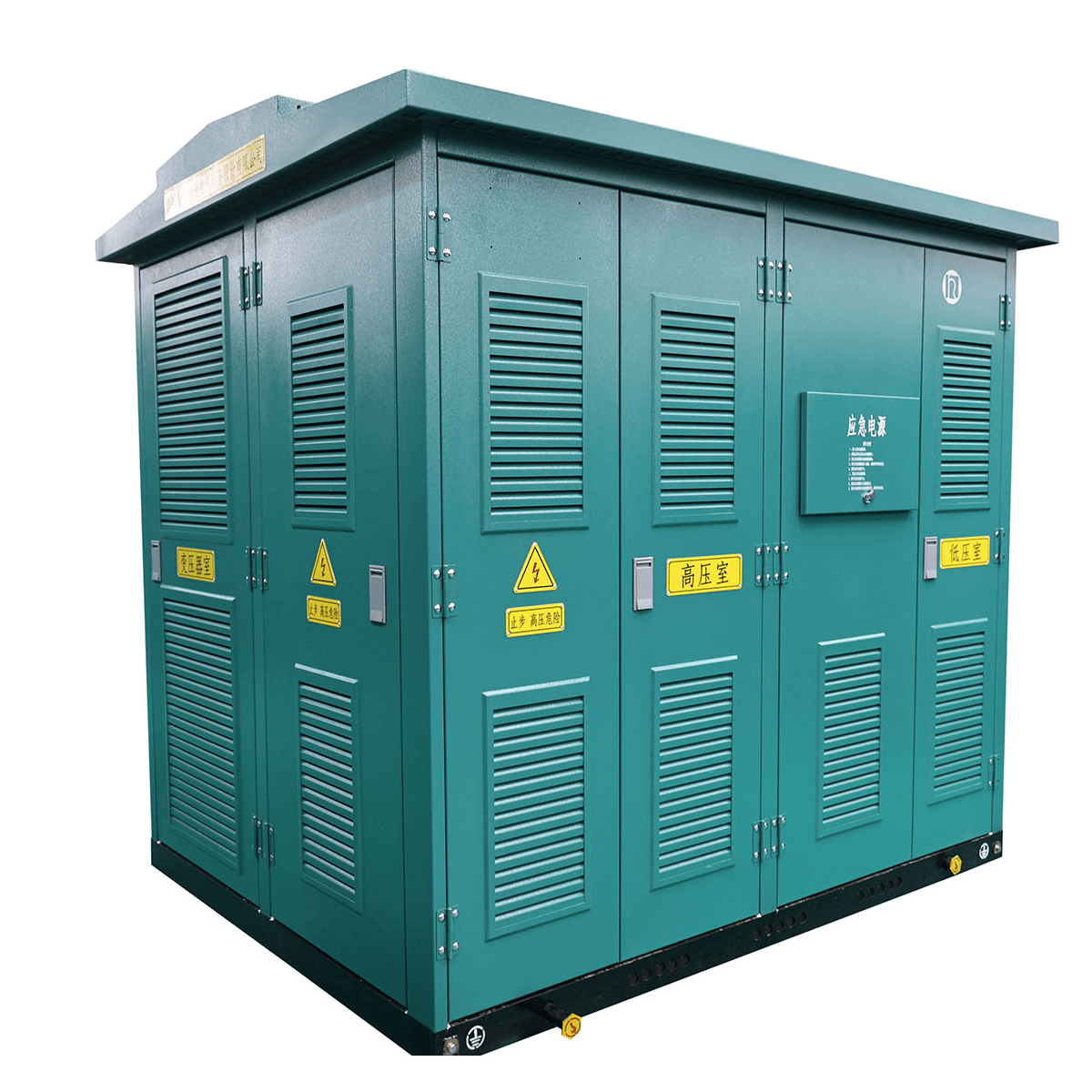

紧凑型变电站：节省空间、投入运行率高的标准变电站
紧凑型变电站是一款完全组装完毕、封闭式且可直接投入使用的电力分配装置。
产品主要特点
|
单元 Units |
项目 Description |
单位 Unit |
参数Parameters |
|
|
高压室 HV Chamber
|
额定电压 Rated voltage |
kV |
12 |
|
|
额定电流 Rated current |
A |
630 |
||
|
额定频率 Rated frequency |
Hz |
50 |
||
|
额定短时耐受电流Rated Short-time withstand current |
kA |
20 |
||
|
变压器室 Transformers Chamber
|
额定电压 Rated voltage |
kV |
12/0.4 |
|
|
额定容量 Rated capacity |
kVA |
50-1600 |
||
|
低压室 LV Chamber
|
额定电压 Rated voltage |
kV |
220 |
|
|
主回路额定电流 Rated current of the main circuit |
A |
100-3200 |
||
|
外壳 Enclosure
|
防护等级Ingress Protection |
|
IP44 |
|
|
噪声水平 Noise |
dB |
≤45 |
||
|
外壳温升级别 Enclosure temperature rise level |
K |
10 |
||
