该系列机床为横梁固定，工作台移动式龙门镗铣床。机床在距工作台面一定距离处，固定高刚性横梁。横梁上配置溜板沿横梁导轨作横向水平运动，即Y向坐标;溜板上配置滑枕式镗铣头，滑枕在溜板上作Z坐标垂向运动;工作台沿床身导轨纵向作X坐标水平运动。机床可实现CNC控制多坐标联动。
适用于汽车，摩托车，航空航天，印刷机械，纺织机械，机车车辆等各种机械设备制造行业中的精密模具，墙:板类(纺织，印刷，化工)，机架类(机车转向架)，箱本类精密零件的数控和仿形加工。在滑枕镗铣头上装有附件铣头时，工件一次装夹可实现五面的铣，镗，钻，铰，攻丝等多工序加工，并可对复杂型面进行三坐标或多坐标数控加工和仿形加工，具有高效率，高质量特点。
1/2

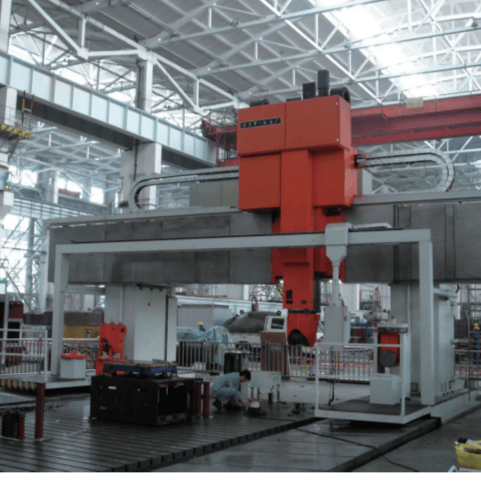

XKA24/27系列数控定梁龙门镗铣床
EXW
¥15,000,000.00-35,000,000.00 /台
产品介绍
技术参数
| 主要技术规格与参数 MAIN SPECIFICATION AND PARAMETERS | |||||||
| 项目 TEM |
单位 UNIT |
XKA2420×40 (加宽型) |
XKA2425×50 （加宽型) |
XKA2430×60 (加宽型) |
XKA2440×80 (加宽型) |
XKA2450×100 (加宽型) |
|
| 工作台工作面积(宽x长) Table Working Surface(W×L) |
mm | 2000×4000 | 2500×5000 | 3000×6000 | 4000×8000 | 5000×10000 | |
| 立柱间距 Distance Between Two Columns |
mm | 2500(3100) | 3100(3500) | 3500(4250) | 4600(4800) | 5600(5800) | |
| 工作台T型槽宽度 Width of Table T-slot |
mm | 28 | 36 | 36 | 36 | 36 | |
| 工作台T型槽数量 No.of Table T-slot |
9 | 11 | 13 | 13 | 15 | ||
| 工作台纵向行程(X)(与工作台长度相关) LongitudnalStroke ofTable()(Table Length Redated) |
mm | 4720 | 5720 | 6720 | 8720 | 10720 | |
| 溜板横向行程(Y) Transverse Stroke of Slide Saddle (Y) |
mm | 3210(3710) | 3710(4210 | 4210(5000 | 5600(6000 | 6600(7000 | |
| 滑枕镗铣头垂向行程(Z) Verticalstrokeof Ram TypeMng and BoringHead(Z |
mm | 1500 | 1500 | 1500 | 1500/2000 | 1500/2000 | |
| 主轴端面到工作台面最大距离 Max Distance fiom Spindle Nose to Table Working Surface |
mm | 1800 | 1750 | 1750 | 1750 | 2250 | |
| 主轴端部锥度(ISO) Taper No.of Spindle Nose(ISO) |
ISO 60 | ISO 60 | ISO 60 | ISO 60 | ISO 60 | ||
| 主轴转数范围 Range of Spindle Rotational speed |
r/min | 6-2000 | 6-1240 | 6-1240 | |||
| 工作台纵向进给(快速)X Range of Table Longitudinal Feeds(Rapid)X |
mm/min | 5-10000(10000) | |||||
| 溜板横向进给(快速)Y RangeofSide Sadcle Tansverse Feeds/Rapid)Y |
mm/min | 5-6000(6000) | |||||
| 滑枕垂向进给(快速)Z Range of Ram Vertical Feeds(Rapid)Z |
mm/min | 5-3000(3000) | |||||
| 主电机功率(交流) Power of Main Motor(AC) |
kw | 58/70 | 101/127 | 101/127 | |||
| 定位精度与重复定位精度 Positioning Accuracy &Repeating Positioning Accuracy |
执行Q/B,623-2017 Adopt the Enterprise Standar Q/B,623-2017 |
||||||
| 工作台最大承载重量 Max.Carrying Capacity of Table |
kg/m | 10000 | 10000 | 12000 | 15000 | 25000 | |
| ※ Note:1. 工作台长度优先选择4、5、6、8、10、12、14,17米，其余长度可与 制造厂协商。 |
|||||||
| X K A 2 4 XX 机床主参数折算系数 Conversion coefficient ofthe main parametersof the macine 机床结构系代号 The code of structure system of the machine 机床结构组代号 The code of structure group of the machine 北一机床 BEUJING NO.1 MACHINE TOOLCO,LTD CNC控制 CNC Control System 镗铣床 Boring and Milling Machines |
|||||||
| 2.配1°×360滑枕或C轴滑枕时，表中“主轴端面到工作台面最大距离”会减少，详细数据请咨询制造厂。 | |||||||
| 3.上述规格机床可配刀库即可成为定梁龙门加工中心。 | |||||||
| 1.The preferred length of table is 4m,5m,6m,8m,10m,12m,14m or 17m, and others can be negotiated with the manufacturer. 2.Max.Distance from Spindle Nose to Table Working Surface will be reduced,when the ram integrated with 1⁹×360 or C-axis. Please consult the manufacturer for detailed data. 3.The machine tool with the specfications above can be used as a fixed beam gantry machining center if equipped with tool magazine. |
|||||||
| X H A 2420 加工中心Machining Centers |
|||||||
| 技术参数、机床外观如有变动恕不另行通知/Design and specifications | |||||||
| are subject to change without notice. 型号举例 | |||||||
| MODE EXAMPLE | |||||||
XKA27系列数控定梁龙门镗铣床
| XKA27系列数控定梁龙门移动镗铣床主要技术规格与参数 MAIN SPECIFICATION AND PARAMETERS OF XKA27 SERIES |
||||
| 项目 ITEM |
单位 UNIT |
XKA2730×100 | XKA2740×120 | XKA2750×160 |
| 工作台面积(宽×长) Size of Table (W×L) |
mm | 3000×10000 | 4000×12000 | 5000×16000 |
| 最大通过宽度 The Max.clearance Between Two Columns |
mm | 3800 | 4800 | 5800 |
| 主轴端面到工作台面最大距离 Max Distancefrom Spinde Nose to Table WorkingSurface |
mm | 1750 | 2655 | 2655 |
| 工作台T型槽宽 Width of Table T-slot |
mm | 36 | 36 | 36 |
| 工作台纵向行程 Longitudinal Travel of Table |
mm | 11500 | 13500 | 17500 |
| 纵向进给范围 Range of Longitudinal Feeds |
m/min | 5~10000 | 5~10000 | 5~10000 |
| 快速 Rapid Traveling Speed | m/min | 10000 | 10000 | 10000 |
| 溜板横向行程 Transverse Travel of Pallet |
mm | 5000 | 6000 | 7000 |
| 溜板进给范围 Range of Pallet Feeds | m/min | 5~6000 | 5~6000 | 5~6000 |
| 快速 Rapid Traveling Speed |
m/min | 6000 | 6000 | 6000 |
| 铣头垂向行程 Vertical Travel of Milling Head |
mm | 1500 | 2000 | 2000 |
| 铣头垂向进给范围 Range of Miling Head Vertical Feeds |
m/min | 5~3000 | 5~3000 | 5~3000 |
| 快速 Rapid Traveling Speed |
m/min | 3000 | 3000 | 3000 |
| 定位精度，重复定位精度 Positioning Accuracy and Repeatability |
执行Q/B,660-2017 Adopt the Enterprise Standar Q/B,660-2017 |
|||
| ※ Note: 1.工作台长度可按用户要求按1000mm尺寸增加和减少。 | ||||

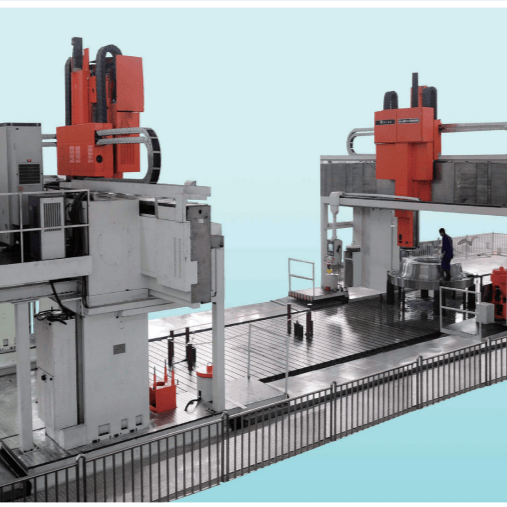

| 2.考虑节约占地、集中加工，本系列可有双龙门配置机床， | ||||
| 3.配1°×360滑枕或C轴滑枕时，表中“主轴端面到工作台面最大距离”会减少，详细数据请咨询制造厂。 | ||||
| 1.Table can be further lengthened or shortened from length of 500 mm and the changing work is done depending on user sspecific requirements | ||||
| 2.Double gantry configuration machine tools of this series are available for the purposes of land conservation and centralized machining. | ||||
| 3.Max.Distance from Spindle Nose to Table Working Surface will be reduced,when the ram integrated with 1°×360 or C-axes. Please consult the manufacturer for detailed data. |
||||
| 技术参数、机床外观如有变动恕不另行通知 / Design and specifications are subject to change without notice. | ||||
