超重型数控龙门镗铣床由北一机床与德国瓦德里希·科堡公司(WALDRICH·COBURG)合作生产制造的完整全新设备，具有合理的设计结构，可靠的精度稳定性，刚性及精度保持性，配套完整性好，部件为模块化设计，标准化程度高，具有良好的互换性，机床设计先进、性能可靠、操作简单、维修方便。
超重型数控龙门镗铣床是集机、电、液等先进技术于一体的重型机械加工设备，主要用于大中等尺寸和大重量零件的金属平面、曲面和孔的加工，广泛应用于机床、军工(船体、战车车体及炮塔等)、工程机械、矿山机械、船用柴油机、船用壳体、汽轮机、机车车辆机体、印刷、轻纺、模具、大型环保设备以及核电设备等制造行业的大型复杂零件的粗、精加工。
1/2

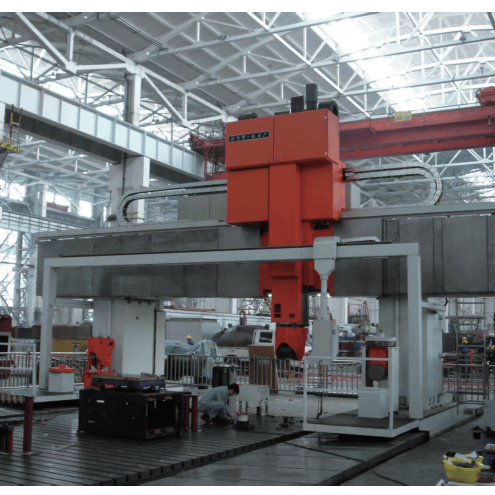

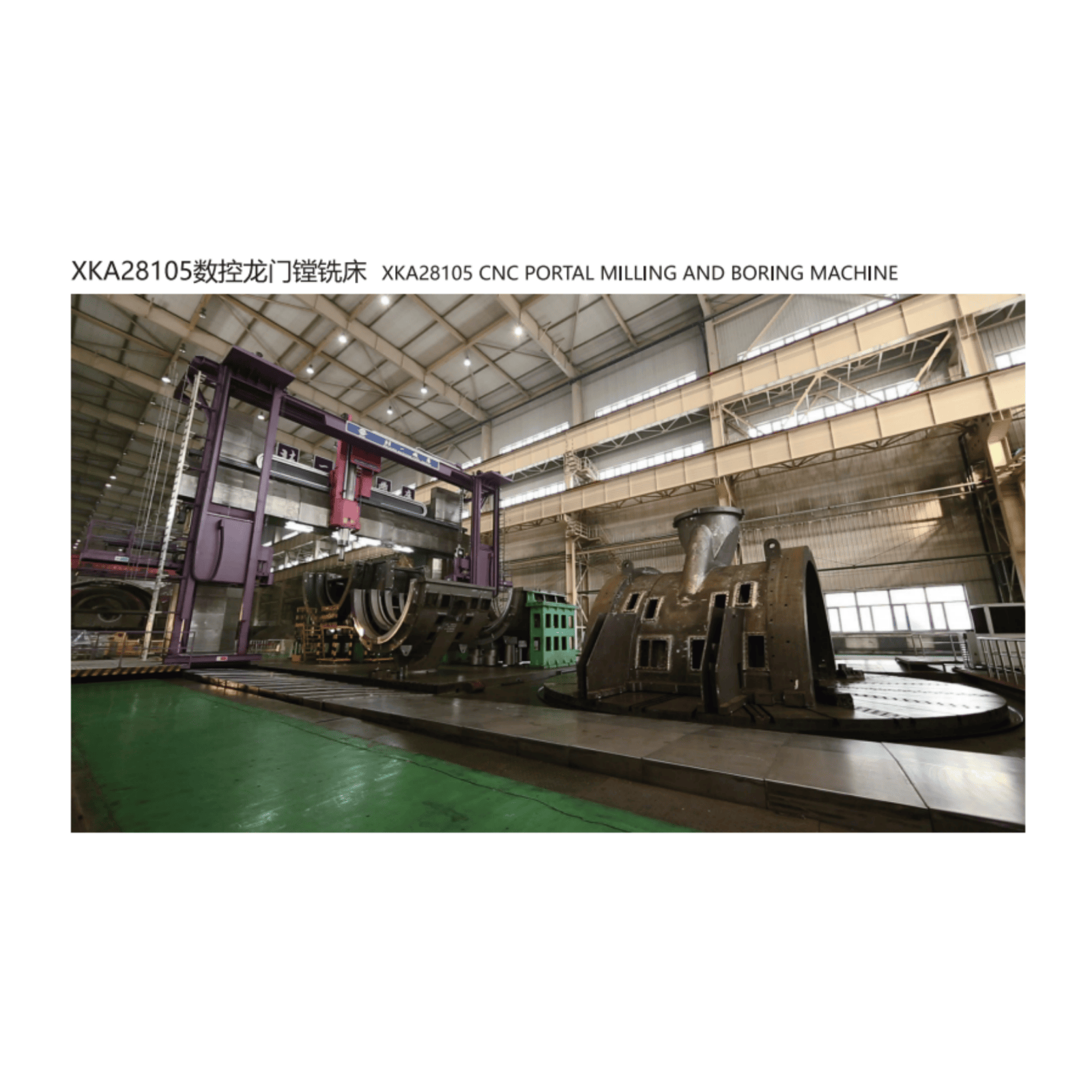

XKA28系列龙门数控加工中心
EXW
¥20,000,000.00-40,000,000.00 /台
产品介绍
技术参数
| XKA28系列数控龙门移动镗铣床主要技术规格与参数 MAIN SPECIFICATION AND PARAMETERS |
||||
| 项 目 ITEM |
单 位 UNIT |
XKA2830×100 | XKA2840×120 | XKA2850×160 |
| 工作台面积(宽×长) Size of Table(W×L) |
mm | 3000×10000 | 4000×12000 | 5000×16000 |
| 龙门最大通过宽度(带防护) Pas-through width of protal(Induding column cover) |
mm | 3800 | 4800 | 5800 |
| 主轴端面到工作台面最大距离 Max.Distance from Spindle Nose to Table Working Surface |
mm | 4000 | 4000 | 5000 |
| 工作台T型槽宽 Width of Table T-slot |
mm | 36 | 36 | 36 |
| 龙门架纵向行程 Longitudinal Travel of Gantry |
mm | 11500 | 13500 | 17500 |
| 龙门架进给范围 Range of Gantry Feeds |
mm/min | 5~10000 | 5~10000 | 5~10000 |
| 快速 Rapid Traveling Speed |
mm/min | 10000 | 10000 | 10000 |
| 溜板横向行程 Transverse Travel of Slide Saddle |
mm | 5000 | 6000 | 7000 |
| 溜板进给范围 Range of Slide Saddle Feeds |
mm/min | 5~6000 | 5~6000 | 5~6000 |
| 快速 Rapid Traveling Speed |
mm/min | 6000 | 6000 | 6000 |
| 铣头垂向行程 Vertical Travel of Milling Head |
mm | 1500 | 2000 | 2000 |
| 铣头进给范围 Range of Milling Head Feeds |
mm/min | 5~3000 | 5~3000 | 5~3000 |
| 快速 Rapid Traveling Speed |
mm/min | 3000 | 3000 | 3000 |
| 横梁升降行程 Up-down Travel of Crossrail |
mm | 2500/3500 | 2500/3500 | 2500/3500 |
| 横梁进给范围 Range of Crossrail Feeds |
mm/min | 5~2000 | 5~2000 | 5~2000 |
| 快速 Rapid Traveling Speed |
mm/min | 2000 | 2000 | 2000 |
| 定位精度与重复定位精度 Positioning Accuracy and Repeating |
执行Q/B,660-2017 Adopt the Enterprise Standar Q/B,660-2017 |
|||
| ※ Note: 1.工作台长度可按用户要求按1000mm 尺寸增加和减少。 | ||||
| 2.考虑节约占地、集中加工，本系列可有双龙门配置机床。 | ||||
| 3.配1°×360滑枕或C轴滑枕时，表中“主轴端面到工作台面最大距离”会减少，详细数据请咨询制造厂。 | ||||
| 1.Table can be further lengthened or shortened from length of 500 mm and the changing work is done depending on user's specific requirements. | ||||
| 2.Double gantry configuration machine tools of this series are available for the purposes of land conservation and centralized machining. | ||||
| 3.Max.Distance from Spindle Nose to Table Working Surface will be reduced,when the ram integrated with 1°×360 or C-axes. Please consult the manufacturer for detailed data. | ||||
| 技术参数、机床外观如有变动恕不另行通知 / Design and specifications are subject to change without notice. | ||||
