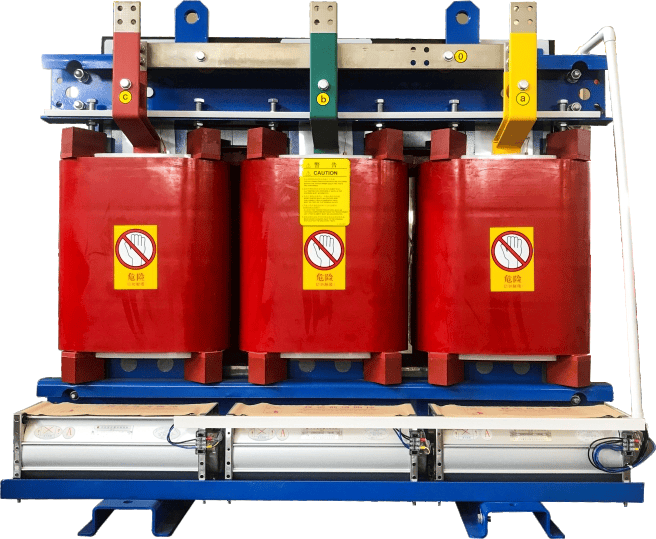

| 额定高压 | 11、10.5、10、6.6、6.3、6kV | 分接范围 | ±2×2.5 | 联结组别标号 | Dyn11或Yyn0 | ||||||||
| 额定低压 | 0.4KV | 绝缘等级 | F级或H级 | 绝缘水平 | LI75AC35/AC3 | ||||||||
| 型号 | 空载损耗 Po kW |
负载损耗 (F级)Pk (120℃)KW |
负载损耗 (H级)Pk (145℃)KW |
阻抗电压 Uk% |
空载电 流lo% |
噪音 LpAdB |
总 重 K G | 外形尺寸 长×宽×高 |
轨距 | ||||
| 主体mm) | 外壳mm) | A×B(mm) | |||||||||||
| SCH17-30/10 | ≤0.06 | ≤0.64 | ≤0.685 | 4 | 1.6 | 52 | 420 | 1130×720×750 | 1500 | 1200 | 1500 | 400×660 | |
| SCH17-50/10 | ≤0.075 | ≤0.9 | ≤0.965 | 1.4 | 52 | 580 | 1190×720×780 | 1500 | 1200 | 1500 | 400×660 | ||
| SCH17-80/10 | ≤0.1 | ≤1.24 | ≤1.33 | 1.3 | 52 | 770 | 1170×720×855 | 1500 | 1200 | 1500 | 400×660 | ||
| SCH17-100/10 | ≤0.11 | ≤1.415 | ≤1.52 | 1.2 | 52 | 870 | 1150×720×900 | 1500 | 1200 | 1500 | 550×660 | ||
| SCBH17-125/10 | ≤0.13 | ≤1.665 | ≤1.78 | 1.1 | 52 | 1020 | 1080×720×965 | 1500 | 1200 | 1500 | 550×660 | ||
| SCBH17-160/10 | ≤0.145 | ≤1.915 | ≤2.05 | 1.1 | 52 | 1240 | 1170×880×950 | 1700 | 1300 | 1700 | 660×820 | ||
| SCBH17-200/10 | ≤0.17 | ≤2.275 | ≤2.44 | 1.0 | 52 | 1260 | 1210×880×1055 | 1700 | 1300 | 1700 | 660×820 | ||
| SCBH17-250/10 | ≤0.195 | ≤2.485 | ≤2.665 | 0.9 | 52 | 1370 | 1140×880×1060 | 1700 | 1300 | 1700 | 660×820 | ||
| SCBH17-315/10 | ≤0.235 | ≤3.125 | ≤3.355 | 0.8 | 54 | 1690 | 1240×880×1075 | 1700 | 1300 | 1700 | 660×820 | ||
| SCBH17-400/10 | ≤0.265 | ≤3.59 | ≤3.85 | 0.8 | 54 | 2010 | 1310×880×1170 | 1800 | 1350 | 1700 | 660×820 | ||
| SCBH17-500/10 | ≤0.305 | ≤4.39 | ≤4.705 | 0.7 | 54 | 2290 | 1390×880×1210 | 1800 | 1350 | 1700 | 820×820 | ||
| SCBH17-630/10 | ≤0.35 | ≤5.365 | ≤5.76 | 6 | 0.7 | 56 | 2680 | 1400×880×1215 | 1800 | 1350 | 1700 | 820×820 | |
| SCBH17-800/10 | ≤0.41 | ≤6.265 | ≤6.715 | 0.7 | 56 | 3410 | 1600×1130×1295 | 1900 | 1450 | 1900 | 820×1070 | ||
| SCBH17-1000/10 | ≤0.47 | ≤7.315 | ≤7.885 | 0.6 | 56 | 3900 | 1550×1130×1375 | 1900 | 1450 | 1900 | 820×1070 | ||
| SCBH17-1250/10 | ≤0.55 | ≤8.72 | ≤9.335 | 0.6 | 56 | 4720 | 1730×1300×1480 | 2200 | 1600 | 2200 | 820×1240 | ||
| SCBH17-1600/10 | ≤0.645 | ≤10.555 | ≤11.32 | 0.6 | 58 | 5630 | 1830×1300×1635 | 2200 | 1600 | 2200 | 820×1240 | ||
| SCBH17-2000/10 | ≤0.85 | ≤13.005 | ≤14.005 | 0.5 | 58 | 6510 | 1960×1400×1750 | 2500 | 1750 | 2200 | 1070×1340 | ||
| SCBH17-2500/10 | ≤1.02 | ≤15.445 | ≤16.605 | 0.5 | 58 | 7980 | 2070×1400×1820 | 2500 | 1750 | 2200 | 1070×1340 | ||
注： “*”项目内的尺寸数据如有变动，恕不另行通知，最终尺寸以提供的产品总装图为准。
