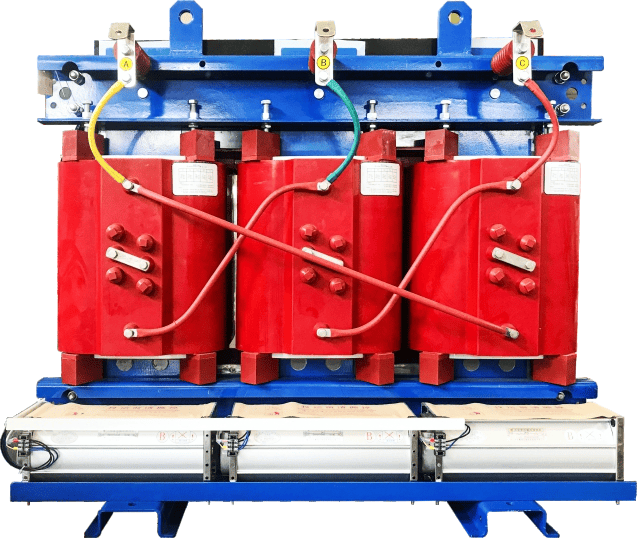

| 额定高压 | 11、10.5、10、6.6、6.3、6kV | 分接范围 | ±2×2.5 | 联结组别标号 | Dyn11或Yyn0 | ||||||||
| 额定低压 | 0.4kV | 绝缘等级 | F级或H级 | 绝缘水平 | LI75AC35/AC3 | ||||||||
| 型号 |
空载损耗 Po kW |
负载损耗(F级)Pk (120℃)KW |
负载损耗(H级)Pk (145℃)KW |
阻抗电压 Uk% |
空载电 流lo% |
噪音 LpAdB |
总重KG | 外形尺寸 长×宽×高 |
轨距 | ||||
| 主体(mm) | 外壳mm) | A×B(mm) | |||||||||||
| SCH15-30/10 | ≤0.07 | ≤0.71 | ≤0.76 | 4 | 1.6 | 52 | 400 | 1110×720×730 | 1500 | 1200 | 1500 | 400×660 | |
| SCH15-50/10 | ≤0.09 | ≤1 | ≤1.07 | 1.4 | 52 | 550 | 1160×720×750 | 1500 | 1200 | 1500 | 400×660 | ||
| SCH15-80/10 | ≤0.12 | ≤1.38 | ≤1.48 | 1.3 | 52 | 730 | 1140×720×835 | 1500 | 1200 | 1500 | 400×660 | ||
| SCH15-100/10 | ≤0.13 | ≤1.57 | ≤1.69 | 1.2 | 52 | 830 | 1120×720×870 | 1500 | 1200 | 1500 | 550×660 | ||
| SCBH15-125/10 | ≤0.15 | ≤1.85 | ≤1.98 | 1.1 | 52 | 970 | 1050×720×940 | 1500 | 1200 | 1500 | 550×660 | ||
| SCBH15-160/10 | ≤0.17 | ≤2.13 | ≤2.28 | 1.1 | 52 | 1180 | 1140×880×925 | 1700 | 1300 | 1700 | 660×820 | ||
| SCBH15-200/10 | ≤0.2 | ≤2.53 | ≤2.71 | 1.0 | 52 | 1200 | 1210×880×1055 | 1700 | 1300 | 1700 | 660×820 | ||
| SCBH15-250/10 | ≤0.23 | ≤2.76 | ≤2.96 | 0.9 | 52 | 1300 | 1140×880×1060 | 1700 | 1300 | 1700 | 660×820 | ||
| SCBH15-315/10 | ≤0.28 | ≤3.47 | ≤3.73 | 0.8 | 54 | 1610 | 1240×880×1075 | 1700 | 1300 | 1700 | 660×820 | ||
| SCBH15-400/10 | ≤0.31 | ≤3.99 | ≤4.28 | 0.8 | 54 | 1910 | 1310×880×1170 | 1800 | 1350 | 1700 | 660×820 | ||
| SCBH15-500/10 | ≤0.36 | ≤4.88 | ≤5.23 | 0.7 | 54 | 2180 | 1390×880×1210 | 1800 | 1350 | 1700 | 820×820 | ||
| SCBH15-630/10 | ≤0.41 | ≤5.96 | ≤6.4 | 6 | 0.7 | 56 | 2250 | 1400×880×1215 | 1800 | 1350 | 1700 | 820×820 | |
| SCBH15-800/10 | ≤0.48 | ≤6.96 | ≤7.46 | 0.7 | 56 | 3250 | 1600×1130×1295 | 1900 | 1450 | 1900 | 820×1070 | ||
| SCBH15-1000/10 | ≤0.55 | ≤8.13 | ≤8.76 | 0.6 | 56 | 3710 | 1550×1130×1375 | 1900 | 1450 | 1900 | 820×1070 | ||
| SCBH15-1250/10 | ≤0.65 | ≤9.69 | ≤10.37 | 0.6 | 56 | 4490 | 1730×1300×1480 | 2200 | 1600 | 2200 | 820×1240 | ||
| SCBH15-1600/10 | ≤0.76 | ≤11.73 | ≤12.58 | 0.6 | 58 | 5360 | 1830×1300×1635 | 2200 | 1600 | 2200 | 820×1240 | ||
| SCBH15-2000/10 | ≤1 | ≤14.45 | ≤15.56 | 0.5 | 58 | 6200 | 1930×1400×1720 | 2500 | 1750 | 2200 | 1070×1340 | ||
| SCBH15-2500/10 | ≤1.2 | ≤17.17 | ≤18.45 | 0.5 | 58 | 7600 | 2030×1400×1780 | 2500 | 1750 | 2200 | 1070×1340 | ||
注： “*”项目内的尺寸数据如有变动，恕不另行通知，最终尺寸以提供的产品总装图为准。
