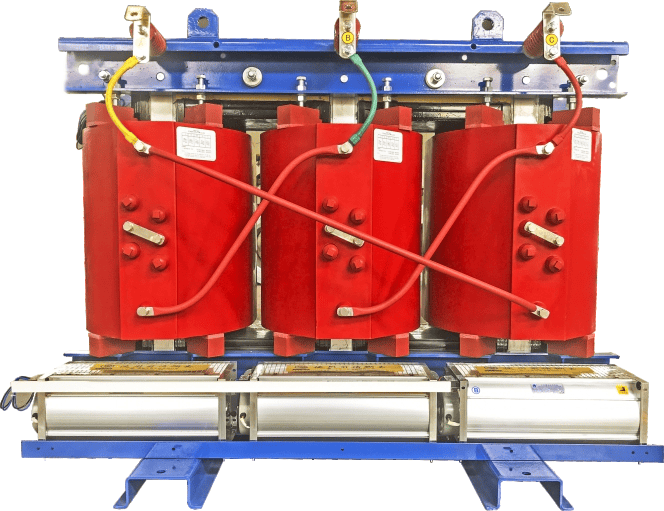

| 额定高压 | 11、10.5、10、6.6、6.3、6kV | 分接范围 | ±2×2.5 | 联结组别标号 | Dyn11 或 Yyn0 | |||||||
| 额定低压 | 0.4kV | 绝缘等级 | F 级或 H 级 | 绝缘水平 | LI75AC35/AC3 | |||||||
| 型号 | 空载损耗 Po kW | 负载损耗 (F级)Pk (120°C) kW | 负载损耗 (H级)Pk (145°C) kW | 阻抗电压 Uk% | 空载电流 Io% | 噪音 LpAdB | 总重 KG | 外形尺寸 长×宽×高 | ||||
| 主体(mm) | 外壳(mm) | 轨距 | ||||||||||
| SC12-30/10 | ≤0.150 | ≤0.71 | ≤0.76 | 4 | 1.8 | 48 | 220 | 590×450×610 | 1500 | 1200 | 1500 | 300×400 |
| SC12-50/10 | ≤0.215 | ≤1.00 | ≤1.07 | 1.8 | 48 | 290 | 690×450×635 | 1500 | 1200 | 1500 | 400×400 | |
| SC12-80/10 | ≤0.295 | ≤1.38 | ≤1.48 | 1.6 | 48 | 390 | 740×450×690 | 1500 | 1200 | 1500 | 400×400 | |
| SC12-100/10 | ≤0.320 | ≤1.57 | ≤1.69 | 1.6 | 48 | 520 | 840×720×905 | 1500 | 1200 | 1500 | 550×660 | |
| SC12-125/10 | ≤0.375 | ≤1.85 | ≤1.98 | 1.2 | 50 | 640 | 900×720×920 | 1500 | 1200 | 1500 | 550×660 | |
| SC12-160/10 | ≤0.430 | ≤2.13 | ≤2.28 | 1.2 | 50 | 740 | 930×720×950 | 1500 | 1200 | 1500 | 550×660 | |
| SC12-200/10 | ≤0.495 | ≤2.53 | ≤2.71 | 1.2 | 50 | 900 | 1050×880×926 | 1500 | 1200 | 1500 | 550×820 | |
| SC12-250/10 | ≤0.575 | ≤2.76 | ≤2.96 | 1.2 | 50 | 1090 | 1100×880×926 | 1500 | 1200 | 1500 | 550×820 | |
| SCB12-315/10 | ≤0.705 | ≤3.47 | ≤3.73 | 1.0 | 50 | 1010 | 1110×880×915 | 1700 | 1300 | 1700 | 660×820 | |
| SCB12-400/10 | ≤0.785 | ≤3.99 | ≤4.28 | 1.0 | 51 | 1480 | 1140×880×1050 | 1700 | 1300 | 1700 | 660×820 | |
| SCB12-500/10 | ≤0.930 | ≤4.88 | ≤5.23 | 1.0 | 51 | 1630 | 1180×880×1050 | 1700 | 1300 | 1700 | 660×820 | |
| SCB12-630/10 | ≤1.04 | ≤5.96 | ≤6.4 | 6 | 0.9 | 51 | 1745 | 1350×880×1009 | 1800 | 1350 | 1700 | 820×820 |
| SCB12-800/10 | ≤1.21 | ≤6.96 | ≤7.46 | 0.9 | 51 | 2160 | 1430×1130×1049 | 1800 | 1350 | 1700 | 820×1070 | |
| SCB12-1000/10 | ≤1.41 | ≤8.13 | ≤8.76 | 0.7 | 51 | 2530 | 1480×1130×1099 | 1900 | 1450 | 1900 | 820×1070 | |
| SCB12-1250/10 | ≤1.67 | ≤9.69 | ≤10.3 | 0.7 | 52 | 2980 | 1550×1130×1179 | 1900 | 1450 | 1900 | 820×1070 | |
| SCB12-1600/10 | ≤1.96 | ≤11.7 | ≤12.5 | 0.7 | 52 | 3715 | 1680×1130×1199 | 2000 | 1500 | 2200 | 820×1070 | |
| SCB12-2000/10 | ≤2.44 | ≤14.4 | ≤15.5 | 0.6 | 52 | 4350 | 1780×1130×1279 | 2200 | 1500 | 2200 | 820×1070 | |
| SCB12-2500/10 | ≤2.88 | ≤17.1 | ≤18.4 | 0.6 | 52 | 5300 | 1900×1130×1354 | 2200 | 1500 | 2200 | 1070×1070 | |
注：“*”项目内的尺寸数据如有变动，恕不另行通知，最终尺寸以提供的产品总装图为准。
